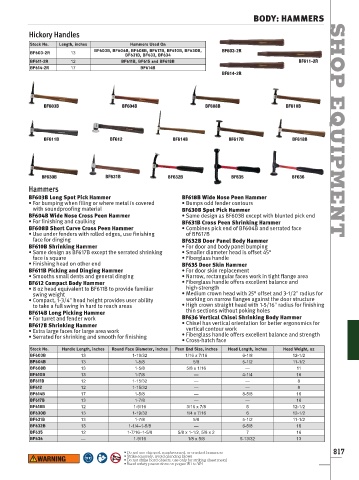

BODY: HAMMERS

Hickory Handles
Stock No. Length, inches Hammers Used On
BF603-2R 13 BF603B, BF604B, BF608B, BF617B, BF610B, BF630B, BF603-2R
BF631B, BF633, BF634 SHOP
BF611-2R 12 BF611B, BF615 and BF618B BF611-2R
BF614-2R 17 BF614B
BF614-2R

BF603B BF604B BF608B BF610B

BF611B BF612 BF614B BF617B BF618B

BF630B BF631B BF632B BF635 BF636 EQUIPMENT
Hammers
BF603B Long Spot Pick Hammer BF618B Wide Nose Peen Hammer
• For bumping when filing or where metal is covered • Bumps odd fender contours
with soundproofing material BF630B Spot Pick Hammer
BF604B Wide Nose Cross Peen Hammer • Same design as BF603B except with blunted pick end
• For finishing and caulking BF631B Cross Peen Shrinking Hammer
BF608B Short Curve Cross Peen Hammer • Combines pick end of BF604B and serrated face
• Use under fenders with rolled edges, use finishing of BF617B
face for dinging BF632B Door Panel Body Hammer
BF610B Shrinking Hammer • For door and body panel bumping
• Same design as BF617B except the serrated shrinking • Smaller diameter head is offset 45°
face is square • Fiberglass handle
• Finishing head on other end BF635 Door Skin Hammer
BF611B Picking and Dinging Hammer • For door skin replacement
• Smooths small dents and general dinging • Narrow, rectangular faces work in tight flange area
BF612 Compact Body Hammer • Fiberglass handle offers excellent balance and
• 8 oz head equivalent to BF611B to provide familiar high-strength
swing weight • Medium crown head with 25° offset and 3-1/2ʺ radius for
• Compact, 1-3/4ʺ head height provides user ability working on narrow flanges against the door structure
to take a full swing in hard to reach areas • High crown straight head with 1-5/16ʺ radius for finishing
BF614B Long Picking Hammer thin sections without poking holes
• For turret and fender work BF636 Vertical Chisel Shrinking Body Hammer
BF617B Shrinking Hammer • Chisel has vertical orientation for better ergonomics for
• Extra large faces for large area work vertical contour work
• Serrated for shrinking and smooth for finishing • Fiberglass handle offers excellent balance and strength
• Cross-hatch face
Stock No. Handle Length, inches Round Face Diameter, inches Peen End Size, inches Head Length, inches Head Weight, oz
BF603B 13 1-19/32 1/16 x 7/16 6-1/8 12-1/2
BF604B 13 1-5/8 5/8 5-1/2 11-1/2
BF608B 13 1-5/8 5/8 x 1/16 — 11
BF610B 13 1-7/8 — 4-1/4 16
BF611B 12 1-15/32 — — 8
BF612 12 1-15/32 — — 8
BF614B 17 1-5/8 — 8-5/8 16
BF617B 13 1-7/8 — — 16
BF618B 12 1-9/16 3/16 x 7/8 5 12-1/2
BF630B 13 1-19/32 1/4 x 7/16 6 12-1/2
BF631B 13 1-7/8 5/8 5-1/2 11-1/2
BF632B 13 1-1/4–1-5/8 — 6-5/8 16
BF635 12 1-7/16–1-5/8 5/8 x 1-1/2, 5/8 x 2 7 16
BF636 — 1-9/16 1/8 x 5/8 5-13/32 13

• Do not use chipped, mushroomed, or cracked hammers 817
• Strike squarely, avoid glancing blows
• Do not strike hard objects, use only for striking sheet metal
• Read safety precautions on pages W1 to W4
