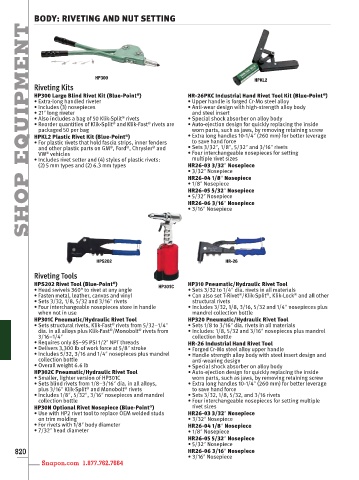

BODY: RIVETING AND NUT SETTING
EQUIPMENT

HP300
HPKL2
Riveting Kits
®
HP300 Large Blind Rivet Kit (Blue-Point ) HR-26PKC Industrial Hand Rivet Tool Kit (Blue-Point )
®
• Extra-long handled riveter • Upper handle is forged Cr-Mo steel alloy
• Includes (3) nosepieces • Anti-wear design with high-strength alloy body
• 21ʺ long riveter and steel insert
®
• Also includes a bag of 50 Klik-Split rivets • Special shock absorber on alloy body
®
®
• Reorder quantities of Klik-Split and Klik-Fast rivets are • Auto-ejection design for quickly replacing the inside
packaged 50 per bag worn parts, such as jaws, by removing retaining screw
HPKL2 Plastic Rivet Kit (Blue-Point ) • Extra long handles 10-1/4ʺ (260 mm) for better leverage
®
• For plastic rivets that hold fascia strips, inner fenders to save hand force
®
®
®
and other plastic parts on GM , Ford , Chrysler and • Sets 3/32ʺ, 1/8ʺ, 5/32ʺ and 3/16ʺ rivets
®
VW vehicles • Four interchangeable nosepieces for setting
• Includes rivet setter and (4) styles of plastic rivets: multiple rivet sizes
(2) 5 mm types and (2) 6.3 mm types HR26-03 3/32ʺ Nosepiece
• 3/32ʺ Nosepiece
SHOP HR26-05 5/32ʺ Nosepiece
HR26-04 1/8ʺ Nosepiece
• 1/8ʺ Nosepiece
• 5/32ʺ Nosepiece
HR26-06 3/16ʺ Nosepiece
• 3/16ʺ Nosepiece

HPS202 HR-26
Riveting Tools
®
HPS202 Rivet Tool (Blue-Point ) HP301C HP310 Pneumatic/Hydraulic Rivet Tool
• Head swivels 360° to rivet at any angle • Sets 3/32 to 1/4ʺ dia. rivets in all materials
®
®
®
• Fasten metal, leather, canvas and vinyl • Can also set T-Rivet /Klik-Split , Klik-Lock and all other
• Sets 3/32, 1/8, 5/32 and 3/16ʺ rivets structural rivets
• Four interchangeable nosepieces store in handle • Includes 3/32, 1/8, 3/16, 5/32 and 1/4ʺ nosepieces plus
when not in use mandrel collection bottle
HP301C Pneumatic/Hydraulic Rivet Tool HP320 Pneumatic/Hydraulic Rivet Tool
• Sets structural rivets, Klik-Fast rivets from 5/32–1/4ʺ • Sets 1/8 to 3/16ʺ dia. rivets in all materials
®
®
®
dia. in all alloys plus Klik-Fast /Monobolt rivets from • Includes: 1/8, 5/32 and 3/16ʺ nosepieces plus mandrel
3/16–1/4ʺ collection bottle
• Requires only 85–95 PSI 1/2ʺ NPT threads HR-26 Industrial Hand Rivet Tool
• Delivers 3,300 lb of work force at 5/8ʺ stroke • Forged Cr-Mo steel alloy upper handle
• Includes 5/32, 3/16 and 1/4ʺ nosepieces plus mandrel • Handle strength alloy body with steel insert design and
collection bottle anti-wearing design
• Overall weight 6.6 lb • Special shock absorber on alloy body
HP302C Pneumatic/Hydraulic Rivet Tool • Auto-ejection design for quickly replacing the inside
• Smaller, lighter version of HP301C worn parts, such as jaws, by removing retaining screw
• Sets blind rivets from 1/8–3/16ʺ dia. in all alloys, • Extra long handles 10-1/4ʺ (260 mm) for better leverage
plus 3/16ʺ Klik-Split and Monobolt rivets to save hand force
®
®
• Includes 1/8ʺ, 5/32ʺ, 3/16ʺ nosepieces and mandrel • Sets 3/32, 1/8, 5/32, and 3/16 rivets
collection bottle • Four interchangeable nosepieces for setting multiple
®
HP30N Optional Rivet Nosepiece (Blue-Point ) rivet sizes
• Use with HP2 rivet tool to replace OEM welded studs HR26-03 3/32ʺ Nosepiece
on trim molding • 3/32ʺ Nosepiece
• For rivets with 1/8ʺ body diameter HR26-04 1/8ʺ Nosepiece
• 7/32ʺ head diameter • 1/8ʺ Nosepiece
HR26-05 5/32ʺ Nosepiece
• 5/32ʺ Nosepiece
820 HR26-06 3/16ʺ Nosepiece
• 3/16ʺ Nosepiece
Snapon.com 1.877.762.7664
