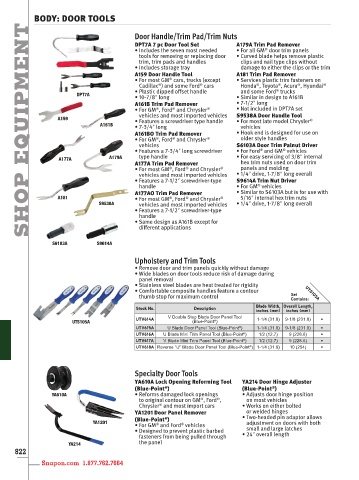

BODY: DOOR TOOLS
EQUIPMENT
Door Handle/Trim Pad/Trim Nuts
DPT7A 7 pc Door Tool Set A179A Trim Pad Remover
®
• Includes the seven most needed • For all GM door trim panels
tools for removing or replacing door • Curved blade helps remove plastic
trim, trim pads and handles clips and nail type clips without
• Includes storage tray damage to either the clips or the trim
A159 Door Handle Tool A181 Trim Pad Remover
®
• For most GM cars, trucks (except • Services plastic trim fasteners on
®
®
®
®
Cadillac ) and some Ford cars Honda , Toyota , Acura , Hyundai
®
®
• Plastic dipped offset handle and some Ford trucks
®
DPT7A
• 10-7/8ʺ long • Similar in design to A161B
A161B Trim Pad Remover • 7-1/2ʺ long
®
®
®
• For GM , Ford and Chrysler • Not included in DPT7A set
vehicles and most imported vehicles S9538A Door Handle Tool
A159
• Features a screwdriver type handle • For most late model Chrysler
®
A161B
• 7-3/4ʺ long vehicles
A161BO Trim Pad Remover • Hook end is designed for use on
®
®
®
• For GM , Ford and Chrysler older style handles
vehicles S6103A Door Trim Palnut Driver
®
®
• Features a 7-3/4ʺ long screwdriver • For Ford and GM vehicles
A179A type handle • For easy servicing of 3/8ʺ internal
A177A
A177A Trim Pad Remover hex trim nuts used on door trim
panels and molding
®
®
®
• For most GM , Ford and Chrysler • 1/4ʺ drive, 1-7/8ʺ long overall
SHOP A181 S9538A A177AO Trim Pad Remover ® • Similar to S6103A but is for use with
vehicles and most imported vehicles
S9614A Trim Nut Driver
• Features a 7-1/2ʺ screwdriver-type
®
• For GM vehicles
handle
5/16ʺ internal hex trim nuts
®
• For most GM , Ford and Chrysler
®
• 1/4ʺ drive, 1-7/8ʺ long overall
vehicles and most imported vehicles
• Features a 7-1/2ʺ screwdriver-type
handle
• Same design as A161B except for
S6103A S9614A different applications
Upholstery and Trim Tools
• Remove door and trim panels quickly without damage
• Wide blades on door tools reduce risk of damage during
panel removal
• Stainless steel blades are heat treated for rigidity
• Comfortable composite handles feature a contour UTS105A
thumb stop for maximum control Set
Contains:
Blade Width, Overall Length,
Stock No. Description
inches (mm) inches (mm)
V Double Step Blade Door Panel Tool
UTV614A 1-1/4 (31.8) 9-1/8 (231.8) •
®
UTS105A (Blue-Point )
®
UTV615A U Blade Door Panel Tool (Blue-Point ) 1-1/4 (31.8) 9-1/8 (231.8) •
®
UTV616A U Blade Mini Trim Panel Tool (Blue-Point ) 1/2 (12.7) 9 (228.6) •
®
UTV617A V Blade Mini Trim Panel Tool (Blue-Point ) 1/2 (12.7) 9 (228.6) •
®
UTV618A Reverse "U" Blade Door Panel Tool (Blue-Point ) 1-1/4 (31.8) 10 (254) •
Specialty Door Tools
YA610A Lock Opening Reforming Tool YA214 Door Hinge Adjuster
®
(Blue-Point ) (Blue-Point )
®
YA610A • Reforms damaged lock openings • Adjusts door hinge position
to original contour on GM , Ford , on most vehicles
®
®
®
Chrysler and most import cars • Works on either bolted
YA1201 Door Panel Remover or welded hinges
®
(Blue-Point ) • Two-headed pin adaptor allows
YA1201 adjustment on doors with both
• For GM and Ford vehicles
®
®
• Designed to prevent plastic barbed small and large latches
fasteners from being pulled through • 24ʺ overall length
YA214 the panel
822
Snapon.com 1.877.762.7664
