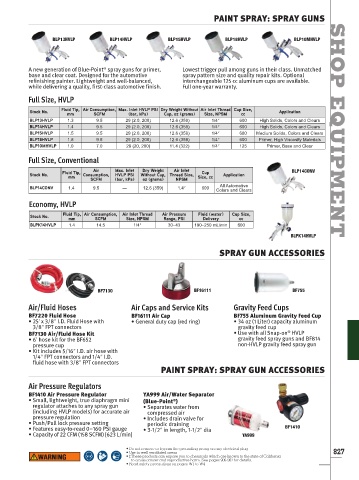

PAINT SPRAY: SPRAY GUNS

BLP13HVLP BLP14HVLP BLP15HVLP BLP18HVLP BLP10MHVLP

®
A new generation of Blue-Point spray guns for primer, Lowest trigger pull among guns in their class. Unmatched SHOP
base and clear coat. Designed for the automotive spray pattern size and quality repair kits. Optional
refinishing painter. Lightweight and well-balanced, interchangeable 125 cc aluminum cups are available.
while delivering a quality, first-class automotive finish. Full one-year warranty.
Full Size, HVLP

Fluid Tip, Air Consumption, Max. Inlet HVLP PSI Dry Weight Without Air Inlet Thread Cup Size,
Stock No. Application
mm SCFM (bar, kPa) Cup, oz (grams) Size, NPSM cc
BLP13HVLP 1.3 9.5 29 (2.0, 200) 12.6 (359) 1/4ʺ 600 High Solids, Colors and Clears
BLP14HVLP 1.4 9.5 29 (2.0, 200) 12.6 (359) 1/4ʺ 600 High Solids, Colors and Clears
BLP15HVLP 1.5 9.5 29 (2.0, 200) 12.6 (359) 1/4ʺ 600 Medium Solids, Colors and Clears
BLP18HVLP 1.8 9.5 29 (2.0, 200) 12.6 (359) 1/4ʺ 600 Primer, High Viscosity Materials
BLP10MHVLP 1.0 7.0 29 (20, 200) 11.4 (322) 1/4ʺ 125 Primer, Base and Clear
Full Size, Conventional

Air Max. Inlet Dry Weight Air Inlet BLP14CONV EQUIPMENT
Fluid Tip, Cup
Stock No. Consumption, HVLP PSI Without Cup, Thread Size, Application
mm Size, cc
SCFM (bar, kPa) oz (grams) NPSM
BLP14CONV 1.4 9.5 — 12.6 (359) 1.4ʺ 600 All Automotive
Colors and Clears
Economy, HVLP
Fluid Tip, Air Consumption, Air Inlet Thread Air Pressure Fluid (water) Cup Size,
Stock No.
mm SCFM Size, NPSM Range, PSI Delivery cc
BLPK14HVLP 1.4 14.5 1/4ʺ 30–43 190–250 mL/min 600
BLPK14HVLP

SPRAY GUN ACCESSORIES

BF7130 BF16111 BF755

Air/Fluid Hoses Air Caps and Service Kits Gravity Feed Cups
BF7220 Fluid Hose BF16111 Air Cap BF755 Aluminum Gravity Feed Cup
• 25ʹ x 3/8ʺ I.D. Fluid Hose with • General duty cap (red ring) • 34 oz (1 Liter) capacity aluminum
3/8ʺ FPT connectors gravity feed cup
®
BF7130 Air/Fluid Hose Kit • Use with all Snap-on HVLP
• 6ʹ hose kit for the BF652 gravity feed spray guns and BF814
pressure cup non-HVLP gravity feed spray gun
• Kit includes 5/16ʺ I.D. air hose with
1/4ʺ FPT connectors and 1/4ʺ I.D.
fluid hose with 3/8ʺ FPT connectors
PAINT SPRAY: SPRAY GUN ACCESSORIES

Air Pressure Regulators
BF1410 Air Pressure Regulator YA999 Air/Water Separator
• Small, lightweight, true diaphragm mini (Blue-Point )
®
regulator attaches to any spray gun • Separates water from
(including HVLP models) for accurate air compressed air
pressure regulation • Includes drain valve for
• Push/Pull lock pressure setting periodic draining
• Features easy-to-read 0–160 PSI gauge • 3-1/2ʺ in length, 1-1/2ʺ dia BF1410
• Capacity of 22 CFM (158 SCFM) [623 L/min] YA999
• Do not remove or bypass the grounding prong on any electrical plug
• Use in well ventilated areas 827
• ‡ These products can expose you to chemicals which are known to the state of California
to cause cancer and reproductive harm. See pages 906-907 for details.
• Read safety precautions on pages W1 to W4
