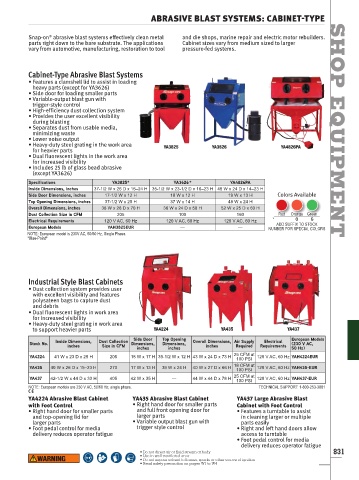

ABRASIVE BLAST SYSTEMS: CABINET-TYPE

Snap-on abrasive blast systems effectively clean metal and die shops, marine repair and electric motor rebuilders.
®
parts right down to the bare substrate. The applications Cabinet sizes vary from medium sized to larger
vary from automotive, manufacturing, restoration to tool pressure-fed systems. SHOP

Cabinet-Type Abrasive Blast Systems
• Features a clamshell lid to assist in loading
heavy parts (except for YA3626)
• Side door for loading smaller parts
• Variable-output blast gun with
trigger-style control
• High-efficiency dust collection system
• Provides the user excellent visibility
during blasting
• Separates dust from usable media,
minimizing waste
• Lower noise output
• Heavy-duty steel grating in the work area YA3825 YA3626 YA4826PA
for heavier parts
• Dual fluorescent lights in the work area
for increased visibility
• Includes 25 lb of glass bead abrasive EQUIPMENT
(except YA3626)
Specifications YA3825* YA3626 * YA4826PA
Inside Dimensions, inches 37-1/2 W x 26 D x 16–24 H 35-1/2 W x 23-1/2 D x 16–23 H 48 W x 24 D x 14–23 H
Side Door Dimensions, inches 17-1/2 W x 12 H 18 W x 12 H 19 W x 13 H Colors Available
Top Opening Dimensions, inches 37-1/2 W x 25 H 37 W x 14 H 48 W x 24 H
Overall Dimensions, inches 38 W x 26 D x 70 H 36 W x 24 D x 58 H 52 W x 25 D x 60 H
Dust Collection Size in CFM 205 100 160 Red Orange Green
Electrical Requirements 120 V AC, 60 Hz 120 V AC, 60 Hz 120 V AC, 60 Hz * O G
ADD SUFFIX TO STOCK
European Models YAH3825EUR — — NUMBER FOR SPECIAL COLORS
NOTE: European model is 230V AC, 50/60 Hz, Single Phase.
*Blue-Point ®

Industrial Style Blast Cabinets
• Dust collection system provides user
with excellent visibility and features
polysateen bags to capture dust
and debris
• Dual fluorescent lights in work area
for increased visibility
• Heavy-duty steel grating in work area
to support heavier parts YA4224 YA435 YA437
Side Door Top Opening European Models
Inside Dimensions, Dust Collection Overall Dimensions, Air Supply Electrical
Stock No. Dimensions, Dimensions, (230 V AC,
inches Size in CFM inches Required Requirements
inches inches 50 Hz)
25 CFM at
YA4224 41 W x 23 D x 29 H 205 18 W x 17 H 39-1/2 W x 12 H 43 W x 24 D x 73 H 120 V AC, 60 Hz YAH4224EUR
100 PSI
18 CFM at
YA435 40 W x 26 D x 15–23 H 270 17 W x 13 H 39 W x 24 H 40 W x 27 D x 66 H 120 V AC, 60 Hz YAH435-EUR
100 PSI
YA437 42-1/2 W x 44 D x 33 H 405 42 W x 35 H — 44 W x 44 D x 78 H 25 CFM at 120 V AC, 60 Hz YAH437-EUR
100 PSI
NOTE: European models are 230 V AC, 50/60 Hz, single phase. TECHNICAL SUPPORT: 1-800-253-3661
YA4224 Abrasive Blast Cabinet YA435 Abrasive Blast Cabinet YA437 Large Abrasive Blast
with Foot Control • Right hand door for smaller parts Cabinet with Foot Control
• Right hand door for smaller parts and full front opening door for • Features a turntable to assist
and top-opening lid for larger parts in cleaning larger or multiple
larger parts • Variable output blast gun with parts easily
• Foot pedal control for media trigger style control • Right and left hand doors allow
delivery reduces operator fatigue access to turntable
• Foot pedal control for media
delivery reduces operator fatigue
• Do not direct air or fluid stream at body 831
• Use in well ventilated area
• Do not expose solvent to flames, sparks or other source of ignition
• Read safety precaution on pages W1 to W4
