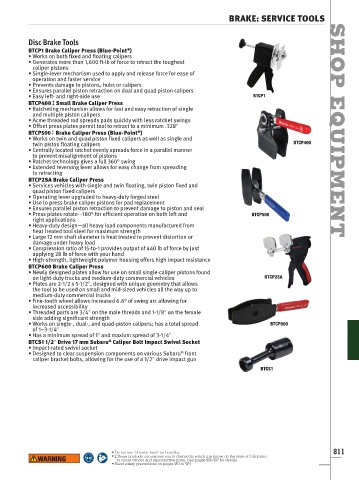

BRAKE: SERVICE TOOLS

Disc Brake Tools
®
BTCP1 Brake Caliper Press (Blue-Point )
• Works on both fixed and floating calipers SHOP
• Generates more than 1,600 ft-lb of force to retract the toughest
caliper pistons
• Single-lever mechanism used to apply and release force for ease of
operation and faster service
• Prevents damage to pistons, hubs or calipers
• Ensures parallel piston retraction on dual and quad piston calipers
• Easy left- and right-side use BTCP1
BTCP400 ‡ Small Brake Caliper Press
• Ratcheting mechanism allows for fast and easy retraction of single
and multiple piston calipers
• Acme threaded rod spreads pads quickly with less ratchet swings
• Offset press plates permit tool to retract to a minimum .328ʺ
BTCP500 ‡ Brake Caliper Press (Blue-Point )
®
• Works on twin and quad piston fixed calipers as well as single and
twin piston floating calipers BTCP400
• Centrally located ratchet evenly spreads force in a parallel manner
to prevent misalignment of pistons
• Ratchet technology gives a full 360° swing
• Extended reversing lever allows for easy change from spreading EQUIPMENT
to retracting
BTCP2SA Brake Caliper Press
• Services vehicles with single and twin floating, twin piston fixed and
quad piston fixed calipers
• Operating lever upgraded to heavy-duty forged steel
• Use to press brake caliper pistons for pad replacement
• Ensures parallel piston retraction to prevent damage to piston and seal
• Press plates rotate—180° for efficient operation on both left and BTCP500
right applications
• Heavy-duty design—all heavy load components manufactured from
heat treated tool steel for maximum strength
• Large 12 mm shaft diameter is heat treated to prevent distortion or
damage under heavy load
• Compression ratio of 15-to-1 provides output of 440 lb of force by just
applying 28 lb of force with your hand
• High-strength, lightweight polymer housing offers high impact resistance
BTCP600 Brake Caliper Press
• Newly designed plates allow for use on small single-caliper pistons found
on light-duty trucks and medium-duty commercial vehicles BTCP2SA
• Plates are 2-1/2 x 5-1/2ʺ, designed with unique geometry that allows
the tool to be used on small and mid-sized vehicles all the way up to
medium-duty commercial trucks
• Fine-tooth wheel allows increased 6.6° of swing arc allowing for
increased accessibility
• Threaded parts are 3/4ʺ on the male threads and 1-1/8ʺ on the female
side adding significant strength
• Works on single-, dual-, and quad-piston calipers; has a total spread BTCP600
of 1–3-1/4ʺ
• Has a minimum spread of 1ʺ and maxium spread of 3-1/4ʺ
®
BTCS1 1/2ʺ Drive 17 mm Subaru Caliper Bolt Impact Swivel Socket
• Impact-rated swivel socket
®
• Designed to clear suspension components on various Subaru front
caliper bracket bolts, allowing for the use of a 1/2ʺ drive impact gun
BTCS1

• Do not use “cheater bars” on handles 811
• ‡ These products can expose you to chemicals which are known to the state of California
to cause cancer and reproductive harm. See pages 906-907 for details.
• Read safety precautions on pages W1 to W4
