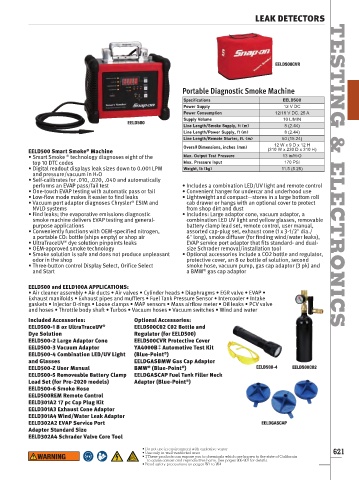

LEAK DETECTORS

EELD500CVR TESTING

Portable Diagnostic Smoke Machine
Specifications EELD500
Power Supply 12 V DC
Power Consumption 12/18 V DC, 25 A
Supply Volume 10 L/MIN
EELD500
Line Length/Smoke Supply, ft (m) 8 (2.44)
Line Length/Power Supply, ft (m) 8 (2.44)
Line Length/Remote Starter, ft. (m) 50 (15.24)
12 W x 9 D x 12 H &
Overall Dimensions, inches (mm)
®
EELD500 Smart Smoke Machine (310 W x 230 D x 310 H)
®
• Smart Smoke technology diagnoses eight of the Max. Output Test Pressure 13 in/H2O
top 10 DTC codes Max. Pressure Input 170 PSI
• Digital readout displays leak sizes down to 0.001 LPM Weight, lb (kg) 11.5 (5.25)
and pressure/vacuum in H2O
• Self-calibrates for .010, .020, .040 and automatically
performs an EVAP pass/fail test • Includes a combination LED/UV light and remote control
• One-touch EVAP testing with automatic pass or fail • Convenient hanger for undercar and underhood use
• Low-flow mode makes it easier to find leaks • Lightweight and compact—stores in a large bottom roll
®
• Vacuum port adaptor diagnoses Chrysler ESIM and cab drawer or hangs with an optional cover to protect
NVLD systems from shop dirt and dust
• Find leaks; the evaporative emissions diagnostic • Includes: Large adaptor cone, vacuum adaptor, a
smoke machine delivers EVAP testing and general- combination LED UV light and yellow glasses, removable
purpose applications battery clamp lead set, remote control, user manual,
• Conveniently functions with OEM-specified nitrogen, assorted cap-plug set, exhaust cone (1 x 3-1/2ʺ dia./
a portable CO2 bottle (ships empty) or shop air 6ʺ long), smoke diffuser (for finding wind/water leaks),
• UltraTraceUV dye solution pinpoints leaks EVAP service port adaptor that fits standard- and dual- ELECTRONICS
®
• OEM-approved smoke technology size Schrader removal/installation tool
• Smoke solution is safe and does not produce unpleasant • Optional accessories include a CO2 bottle and regulator,
odor in the shop protective cover, an 8 oz bottle of solution, second
• Three-button control Display Select, Orifice Select smoke hose, vacuum pump, gas cap adaptor (3 pk) and
®
and Start a BMW gas cap adaptor
EELD500 and EELD100A APPLICATIONS:
• Air cleaner assembly • Air ducts • Air valves • Cylinder heads • Diaphragms • EGR valve • EVAP •
Exhaust manifolds • Exhaust pipes and mufflers • Fuel Tank Pressure Sensor • Intercooler • Intake
gaskets • Injector O-rings • Loose clamps • MAP sensors • Mass airflow meter • Oil leaks • PCV valve
and hoses • Throttle body shaft • Turbos • Vacuum hoses • Vacuum switches • Wind and water
Included Accessories: Optional Accessories:
®
EELD500-1 8 oz UltraTraceUV EELD500C02 C02 Bottle and
Dye Solution Regulator (for EELD500)
EELD500-2 Large Adaptor Cone EELD500CVR Protective Cover
EELD500-3 Vacuum Adaptor YA4000B ‡ Automotive Test Kit
EELD500-4 Combination LED/UV Light (Blue-Point )
®
and Glasses EELDGASBMW Gas Cap Adaptor
®
EELD500-Z User Manual BMW (Blue-Point ) EELD500-4 EELD500C02
®
EELD500-5 Removeable Battery Clamp EELDGASCAP Fuel Tank Filler Neck
Lead Set (for Pre-2020 models) Adaptor (Blue-Point )
®
EELD500-6 Smoke Hose
EELD500REM Remote Control
EELD301A2 17 pc Cap Plug Kit
EELD301A3 Exhaust Cone Adaptor
EELD301A4 Wind/Water Leak Adaptor
EELD302A2 EVAP Service Port EELDGASCAP
Adaptor Standard Size
EELD302A4 Schrader Valve Core Tool

• Do not use in environment with explosive vapor
• Use only in well ventilated area 621
• ‡ These products can expose you to chemicals which are known to the state of California
to cause cancer and reproductive harm. See pages 906-907 for details.
