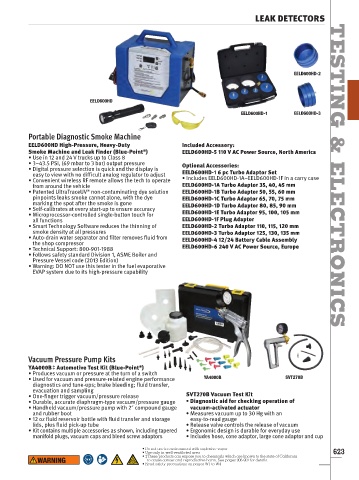

LEAK DETECTORS

EELD600HD-2 TESTING

EELD600HD
EELD600HD-1 EELD600HD-3

Portable Diagnostic Smoke Machine
EELD600HD High-Pressure, Heavy-Duty Included Accessory: &
®
Smoke Machine and Leak Finder (Blue-Point ) EELD600HD-5 110 V AC Power Source, North America
• Use in 12 and 24 V trucks up to Class 8
• 3–43.5 PSI, (69 mbar to 3 bar) output pressure Optional Accessories:
• Digital pressure selection is quick and the display is
easy to view with no difficult analog regulator to adjust EELD600HD-1 6 pc Turbo Adaptor Set
• Convenient wireless RF remote allows the tech to operate • Includes EELD600HD-1A–EELD600HD-1F in a carry case
from around the vehicle EELD600HD-1A Turbo Adaptor 35, 40, 45 mm
®
• Patented UltraTraceUV non-contaminating dye solution EELD600HD-1B Turbo Adaptor 50, 55, 60 mm
pinpoints leaks smoke cannot alone, with the dye EELD600HD-1C Turbo Adaptor 65, 70, 75 mm
marking the spot after the smoke is gone EELD600HD-1D Turbo Adaptor 80, 85, 90 mm
• Self-calibrates at every start-up to ensure accuracy
• Microprocessor-controlled single-button touch for EELD600HD-1E Turbo Adaptor 95, 100, 105 mm
all functions EELD600HD-1F Plug Adaptor
• Smart Technology Software reduces the thinning of EELD600HD-2 Turbo Adaptor 110, 115, 120 mm
smoke density at all pressures EELD600HD-3 Turbo Adaptor 125, 130, 135 mm
• Auto-drain water separator and filter removes fluid from EELD600HD-4 12/24 Battery Cable Assembly
the shop compressor ELECTRONICS
• Technical Support: 800-901-1988 EELD600HD-6 240 V AC Power Source, Europe
• Follows safety standard Division 1, ASME Boiler and
Pressure Vessel code (2013 Edition)
• Warning: DO NOT use this tester in the fuel evaporative
EVAP system due to its high-pressure capability

Vacuum Pressure Pump Kits
®
YA4000B ‡ Automotive Test Kit (Blue-Point )
• Produces vacuum or pressure at the turn of a switch
• Used for vacuum and pressure-related engine performance YA4000B SVT270B
diagnostics and tune-ups; brake bleeding; fluid transfer,
evacuation and sampling
• One-finger trigger vacuum/pressure release SVT270B Vacuum Test Kit
• Durable, accurate diaphragm-type vacuum/pressure gauge • Diagnostic aid for checking operation of
• Handheld vacuum/pressure pump with 2ʺ compound gauge vacuum-activated actuator
and rubber boot • Measures vacuum up to 30 Hg with an
• 12 oz fluid reservoir bottle with fluid transfer and storage easy-to-read gauge
lids, plus fluid pick-up tube • Release valve controls the release of vacuum
• Kit contains multiple accessories as shown, including tapered • Ergonomic design is durable for everyday use
manifold plugs, vacuum caps and bleed screw adaptors • Includes hose, cone adaptor, large cone adaptor and cup
• Do not use in environment with explosive vapor
• Use only in well ventilated area 623
• ‡ These products can expose you to chemicals which are known to the state of California
to cause cancer and reproductive harm. See pages 906-907 for details.
• Read safety precautions on pages W1 to W4
