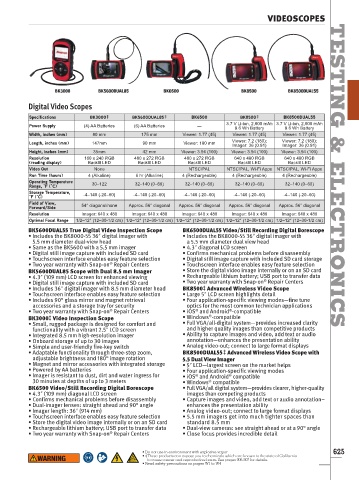

Page 627 - 实耐宝完整US版1500

VIDEOSCOPES

BK3000 BK5600DUAL85 BK6500 BK8500 BK8500DUAL55 TESTING

Digital Video Scopes
Specifications BK3000 ‡ BK5600DUAL85 ‡ BK6500 BK8500 ‡ BK8500DUAL55
Power Supply (4) AA Batteries (6) AA Batteries — 3.7 V Li-ion, 2,600 mAh 3.7 V Li-ion, 2,600 mAh
9.6 Wh Battery
9.6 Wh Battery
Width, inches (mm) 80 mm 175 mm Viewer: 1.77 (45) Viewer: 1.77 (45) Viewer: 1.77 (45)
Length, inches (mm) 147mm 90 mm Viewer: 180 mm Viewer: 7.2 (180); Viewer: 7.2 (180); &
Imager: 36 (0.91)
Imager: 36 (0.91)
Height, inches (mm) 35mm 42 mm Viewer: 3.94 (100) Viewer: 3.94 (100) Viewer: 3.94 (100)
Resolution 160 x 240 RGB 480 x 272 RGB 480 x 272 RGB 640 x 480 RGB 640 x 480 RGB
(reading display) Backlit LED Backlit LED Backlit LED Backlit LED Backlit LED
Video Out None — NTSC/PAL NTSC/PAL, Wi-Fi Apps NTSC/PAL, Wi-Fi Apps
Run Time (hours) 4 (Alkaline) 6 hr (Alkaline) 4 (Rechargeable) 4 (Rechargeable) 4 (Rechargeable)
Operating Temperature 30–122 32–140 (0–60) 32–140 (0–60) 32–140 (0–60) 32–140 (0–60)
Range, °F (°C)
Storage Temperature,
°F (°C) -4–140 (-20–60) -4–140 (-20–60) -4–140 (-20–60) -4–140 (-20–60) -4–140 (-20–60)
Field of View,
Forward/Side 54° diagonal/none Approx. 56° diagonal Approx. 56° diagonal Approx. 56° diagonal Approx. 56° diagonal
Resolution Imager: 640 x 480 Imager: 640 x 480 Imager: 640 x 480 Imager: 640 x 480 Imager: 640 x 480
Optimal Focal Range 1/2–12ʺ (12–30-1/2 cm) 1/2–12ʺ (12–30-1/2 cm) 1/2–12ʺ (12–30-1/2 cm) 1/2–12ʺ (12–30-1/2 cm) 1/2–12ʺ (12–30-1/2 cm)
BK5600DUAL55 True Digital Video Inspection Scope BK6500DUAL55 Video/Still Recording Digital Borescope
• Includes the BK8000-55 36ʺ digital imager with • Includes the BK8000-55 36ʺ digital imager with
5.5 mm diameter dual-view head a 5.5 mm diameter dual view head ELECTRONICS
• Same as the BK5600 with a 5.5 mm imager • 4.3ʺ diagonal LCD screen
• Digital still image capture with included SD card • Confirms mechanical problems before disassembly
• Touchscreen interface enables easy feature selection • Digital still image capture with included SD card storage
®
• Two year warranty with Snap-on Repair Centers • Touchscreen interface enables easy feature selection
BK5600DUAL85 Scope with Dual 8.5 mm Imager • Store the digital video image internally or on an SD card
• 4.3ʺ (109 mm) LCD screen for enhanced viewing • Rechargeable lithium battery; USB port to transfer data
®
• Digital still image capture with included SD card • Two year warranty with Snap-on Repair Centers
• Includes 36ʺ digital imager with 8.5 mm diameter head BK8500‡ Advanced Wireless Video Scope
• Touchscreen interface enables easy feature selection • Large 5ʺ LCD screen highlights detail
• Includes 90° glass mirror and magnet retrieval • Four application-specific viewing modes—fine tune
accessories and a storage tray for security optics for the most common technician applications
• Two year warranty with Snap-on Repair Centers • iOS and Android -compatible
®
®
®
®
BK3000‡ Video Inspection Scope • Windows -compatible
• Small, rugged package is designed for comfort and • Full VGA/all-digital system—provides increased clarity
functionality with a vibrant 2.5ʺ LCD screen and higher quality images than competitive products
• Integrated 8.5 mm high-resolution imager • Ability to capture images and video, add text or audio
• Onboard storage of up to 30 images annotation—enhances the presentation ability
• Simple and user-friendly five-key switch • Analog video-out; connect to large format displays
• Adaptable functionality through three-step zoom, BK8500DUAL55 ‡ Advanced Wireless Video Scope with
adjustable brightness and 180° image rotation 5.5 Dual View Imager
• Magnet and mirror accessories with integrated storage • 5ʺ LCD—largest screen on the market helps
• Powered by AA batteries • Four application-specific viewing modes
• Imager is resistant to dust, dirt and water ingress for • iOS and Android compatible
®
®
30 minutes at depths of up to 3 meters • Windows compatible
®
BK6500 Video/Still Recording Digital Borescope • Full VGA/all digital system—provides clearer, higher-quality
• 4.3ʺ (109 mm) diagonal LCD screen images than competing products
• Confirms mechanical problems before disassembly • Capture images and video, add text or audio annotation–
• Dual-imager lenses: straight ahead and 90° angle enhances the presentation ability
• Imager length: 36ʺ (914 mm) • Analog video-out; connect to large format displays
• Touchscreen interface enables easy feature selection • 5.5 mm imagers get into much tighter spaces than
• Store the digital video image internally or on an SD card standard 8.5 mm
• Rechargeable lithium battery; USB port to transfer data • Dual-view cameras: see straight ahead or at a 90° angle
®
• Two year warranty with Snap-on Repair Centers • Close focus provides incredible detail
• Do not use in environment with explosive vapor 625
• ‡ These products can expose you to chemicals which are known to the state of California
to cause cancer and reproductive harm. See pages 906-907 for details.
• Read safety precautions on pages W1 to W4
