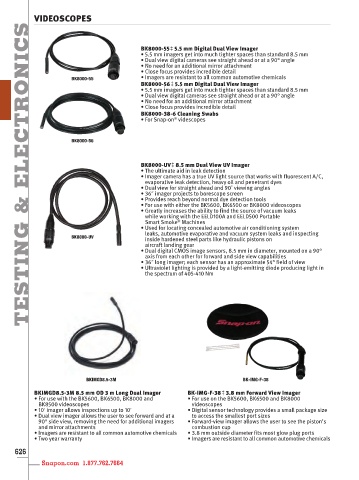

ELECTRONICS VIDEOSCOPES

BK8000-55 ‡ 5.5 mm Digital Dual View Imager
• 5.5 mm imagers get into much tighter spaces than standard 8.5 mm
• Dual view digital cameras see straight ahead or at a 90° angle
• No need for an additional mirror attachment
• Close focus provides incredible detail
BK8000-55 • Imagers are resistant to all common automotive chemicals
BK8000-56 ‡ 5.5 mm Digital Dual View Imager
• 5.5 mm imagers get into much tighter spaces than standard 8.5 mm
• Dual view digital cameras see straight ahead or at a 90° angle
• No need for an additional mirror attachment
• Close focus provides incredible detail
BK8000-38-6 Cleaning Swabs
• For Snap-on videscopes
®

BK8000-56

BK8000-UV ‡ 8.5 mm Dual View UV Imager
• The ultimate aid in leak detection
• Imager camera has a true UV light source that works with fluorescent A/C,
evaporative leak detection, heavy oil and penetrant dyes
• Dual view for straight ahead and 90˚ viewing angles
• 36ʺ imager projects to borescope screen
& • Provides reach beyond normal dye detection tools
• For use with either the BK5600, BK6500 or BK8000 videoscopes
• Greatly increases the ability to find the source of vacuum leaks
while working with the EELD100A and EELD500 Portable
Smart Smoke Machines
®
TESTING • Dual digital CMOS image sensors, 8.5 mm in diameter, mounted on a 90°
• Used for locating concealed automotive air conditioning system
leaks, automotive evaporative and vacuum system leaks and inspecting
BK8000-UV
inside hardened steel parts like hydraulic pistons on
aircraft landing gear
axis from each other for forward and side view capabilities
• 36ʺ long imager; each sensor has an approximate 54° field of view
• Ultraviolet lighting is provided by a light-emitting diode producing light in
the spectrum of 405-410 Nm

BKIMGD8.5-3M BK-IMG-F-38
BKIMGD8.5-3M 8.5 mm OD 3 m Long Dual Imager BK-IMG-F-38 ‡ 3.8 mm Forward View Imager
• For use with the BK5600, BK6500, BK8000 and • For use on the BK5600, BK6500 and BK8000
BK8500 videoscopes videoscopes
• 10ʹ imager allows inspections up to 10ʹ • Digital sensor technology provides a small package size
• Dual view imager allows the user to see forward and at a to access the smallest port sizes
90° side view, removing the need for additional imagers • Forward-view imager allows the user to see the piston’s
and mirror attachments combustion cup
• Imagers are resistant to all common automotive chemicals • 3.8 mm outside diameter fits most glow plug ports
• Two year warranty • Imagers are resistant to all common automotive chemicals
