ELECTRONICS INFRARED THERMOMETERS

CTG861DB CTG861K1

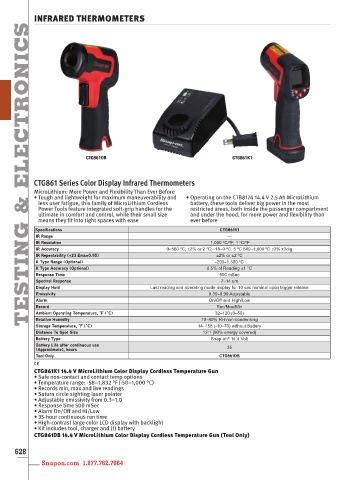

CTG861 Series Color Display Infrared Thermometers
MicroLithium: More Power and Flexibility Than Ever Before • Operating on the CTB8174 14.4 V 2.5 Ah MicroLithium
• Tough and lightweight for maximum maneuverability and
& less user fatigue, this family of MicroLithium Cordless battery, these tools deliver big power in the most
Power Tools feature integrated soft-grip handles for the
restricted areas, both inside the passenger compartment
ultimate in comfort and control, while their small size and under the hood, for more power and flexibility than
means they fit into tight spaces with ease ever before CTG861K1
TESTING IR Accuracy Last reading and operating mode display for 10 sec nominal upon trigger release
Specifications
—
IR Range
1,000 ºC/ºF; 1 ºC/ºF
IR Resolution
0–560 ºC; ±2% or 2 ºC: -18–0 ºC: 5 ºC 560–1,000 ºC ±2% ±3dig
±2% or ±2 ºC
IR Repeatability (+23 Ems=0.95)
-200–1,300 ºC
K Type Range (Optional)
K Type Accuracy (Optional)
0.5% of Reading ±1 °C
Response Time
500 mSec
7–14 um
Spectral Response
Display Hold
0.30–0.99 Adjustable
Emissivity
On/Off and High/Low
Alarm
Rec/Max/Min
Record
32–120 (0–50)
Ambient Operating Temperature, °F (°C)
10–80% RH non-condensing
Relative Humidity
Storage Temperature, °F (°C)
Distance To Spot Size 14–158 (-10–70) without Battery
12:1 (90% energy covered)
®
Battery Type Snap-on 14.4 Volt
Battery Life after continuous use 35
(Approximate), hours
Tool Only CTG861DB
CTG861K1 14.4 V MicroLithium Color Display Cordless Temperature Gun
• Safe non-contact and contact temp options
• Temperature range: -58–1,832 °F (-50–1,000 °C)
• Records min, max and live readings
• Saturn circle sighting laser pointer
• Adjustable emissivity from 0.3–1.0
• Response time 500 mSec
• Alarm On/Off and Hi/Low
• 35-hour continuous run time
• High-contrast large color LCD display with backlight
• Kit includes tool, charger and (1) battery
CTG861DB 14.4 V MicroLithium Color Display Cordless Temperature Gun (Tool Only)
