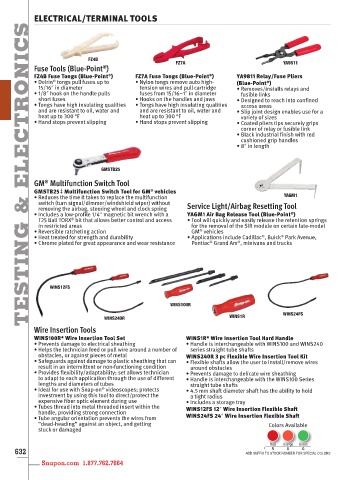

Page 634 - 实耐宝完整US版1500

ELECTRONICS ELECTRICAL/TERMINAL TOOLS

FZ4B
FZ7A YA9811
Fuse Tools (Blue-Point )
®
®
FZ4B Fuse Tongs (Blue-Point ) FZ7A Fuse Tongs (Blue-Point ) YA9811 Relay/Fuse Pliers
®
®
• Delrin tongs pull fuses up to • Nylon tongs remove auto high- (Blue-Point )
®
15/16ʺ in diameter tension wires and pull cartridge • Removes/installs relays and
• 1/8ʺ hook on the handle pulls fuses from 15/16–1ʺ in diameter fusible links
short fuses • Hooks on the handles and jaws • Designed to reach into confined
• Tongs have high insulating qualities • Tongs have high insulating qualities access areas
and are resistant to oil, water and and are resistant to oil, water and • Slip joint design enables use for a
heat up to 300 °F heat up to 300 °F variety of sizes
• Hand stops prevent slipping • Hand stops prevent slipping • Coated pliers tips securely grips
corner of relay or fusible link
• Black industrial finish with red
cushioned grip handles
• 8ʺ in length
GMSTB25
®
GM Multifunction Switch Tool
GMSTB25 ‡ Multifunction Switch Tool for GM vehicles YAGM1
®
• Reduces the time it takes to replace the multifunction
& switch (turn signal/dimmer/windshield wiper) without Service Light/Airbag Resetting Tool
removing the airbag, steering wheel and clock spring
• Includes a low-profile 1/4ʺ magnetic bit wrench with a YAGM1 Air Bag Release Tool (Blue-Point )
®
®
T25 Ball TORX bit that allows better control and access • Tool will quickly and easily release the retention springs
TESTING WINS12FS
for the removal of the SIR module on certain late-model
in restricted areas
• Reversible ratcheting action
GM vehicles
®
• Heat treated for strength and durability
®
®
• Applications include Cadillac , Buick Park Avenue,
Pontiac Grand Am , minivans and trucks
®
®
• Chrome plated for great appearance and wear resistance

Wire Insertion Tools WINS240R WINS100R WINS1R WINS24FS
WINS100R* Wire Insertion Tool Set WINS1R* Wire Insertion Tool Hard Handle
• Prevents damage to electrical sheathing • Handle is interchangeable with WINS100 and WINS240
• Helps the technician feed or pull wire around a number of series straight tube shafts
obstacles, or against pieces of metal WINS240R 3 pc Flexible Wire Insertion Tool Kit
• Safeguards against damage to plastic sheathing that can • Flexible shafts allow the user to install/remove wires
result in an intermittent or non-functioning condition around obstacles
• Provides flexibility/adaptability; set allows technician • Prevents damage to delicate wire sheathing
to adapt to each application through the use of different • Handle is interchangeable with the WINS100 Series
lengths and diameters of tubes straight tube shafts
• Ideal for use with Snap-on videoscopes; protects • 4.5 mm shaft diameter shaft has the ability to hold
®
investment by using this tool to direct/protect the a tight radius
expensive fiber optic element during use • Includes a storage tray
• Tubes thread into metal threaded insert within the WINS12FS 12ʺ Wire Insertion Flexible Shaft
handle, providing strong connection
• Tube angular orientation prevents the wires from WINS24FS 24ʺ Wire Insertion Flexible Shaft
“dead-heading” against an object, and getting Colors Available
stuck or damaged

Red Orange Green
* R O G
632 ADD SUFFIX TO STOCK NUMBER FOR SPECIAL COLORS
Snapon.com 1.877.762.7664
