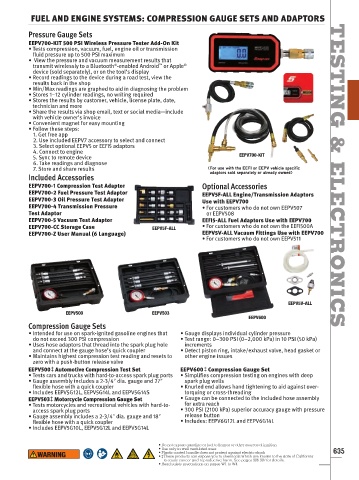

FUEL AND ENGINE SYSTEMS: COMPRESSION GAUGE SETS AND ADAPTORS

Pressure Gauge Sets
EEPV700-KIT 500 PSI Wireless Pressure Tester Add-On Kit
• Tests compression, vacuum, fuel, engine oil or transmission
fluid pressure up to 500 PSI maximum

• View the pressure and vacuum measurement results that
transmit wirelessly to a Bluetooth -enabled Android or Apple
®
™
®
device (sold separately), or on the tool’s display
• Record readings to the device during a road test, view the TESTING
results back in the shop
• Min/Max readings are graphed to aid in diagnosing the problem
• Stores 1–12 cylinder readings, no writing required
• Stores the results by customer, vehicle, license plate, date,
technician and more
• Share the results via shop email, text or social media—include
with vehicle owner’s invoice
• Convenient magnet for easy mounting
• Follow these steps:
1. Get free app
2. Use included EEPV7 accessory to select and connect
3. Select optional EEPV5 or EEFI5 adaptors &
4. Connect to engine
5. Sync to remote device EEPV700-KIT
6. Take readings and diagnose
7. Store and share results ( For use with the EEFI or EEPV vehicle specific
adaptors sold separately or already owned)
Included Accessories
EEPV700-1 Compression Test Adaptor Optional Accessories
EEPV700-2 Fuel Pressure Test Adaptor EEPV5F-ALL Engine/Transmission Adaptors
EEPV700-3 Oil Pressure Test Adaptor Use with EEPV700
EEPV700-4 Transmission Pressure • For customers who do not own EEPV507
Test Adaptor or EEPV508
EEPV700-5 Vacuum Test Adaptor EEFI5-ALL Fuel Adaptors Use with EEPV700
EEPV700-CC Storage Case EEPV5F-ALL • For customers who do not own the EEFI500A
EEPV700-Z User Manual (6 Language) EEPV5V-ALL Vacuum Fittings Use with EEPV700
• For customers who do not own EEPV511 ELECTRONICS

EEPV5V-ALL
EEPV500 EEPV503
EEPV600
Compression Gauge Sets
• Intended for use on spark-ignited gasoline engines that • Gauge displays individual cylinder pressure
do not exceed 300 PSI compression • Test range: 0–300 PSI (0–2,000 kPa) in 10 PSI (50 kPa)
• Uses hose adaptors that thread into the spark plug hole increments
and connect at the gauge hose’s quick coupler • Detect piston ring, intake/exhaust valve, head gasket or
• Maintains highest compression test reading and resets to other engine issues
zero with a push-button release valve
EEPV500 ‡ Automotive Compression Test Set EEPV600 ‡ Compression Gauge Set
• Tests cars and trucks with hard-to-access spark plug ports • Simplifies compression testing on engines with deep
• Gauge assembly includes a 2-3/4ʺ dia. gauge and 27ʺ spark plug wells
flexible hose with a quick coupler • Knurled end allows hand tightening to aid against over-
• Includes EEPV5G12L, EEPV5G14L and EEPV5G14S torquing or cross-threading
EEPV503 ‡ Motorcycle Compression Gauge Set • Gauge can be connected to the included hose assembly
• Tests motorcycles and recreational vehicles with hard-to- for extra reach
access spark plug ports • 300 PSI (2100 kPa) superior accuracy gauge with pressure
• Gauge assembly includes a 2-3/4ʺ dia. gauge and 18ʺ release button
flexible hose with a quick coupler • Includes: EEPV6G12L and EEPV6G14L
• Includes EEPV5G10L, EEPV5G12L and EEPV5G14L

• Do not expose gasoline or fuel to flames or other sources of ignition
• Use only in well ventilated area
• Plastic coated handle does not protect against electric shock 635
• ‡ These products can expose you to chemicals which are known to the state of California
to cause cancer and reproductive harm. See pages 906-907 for details.
• Read safety precautions on pages W1 to W4
