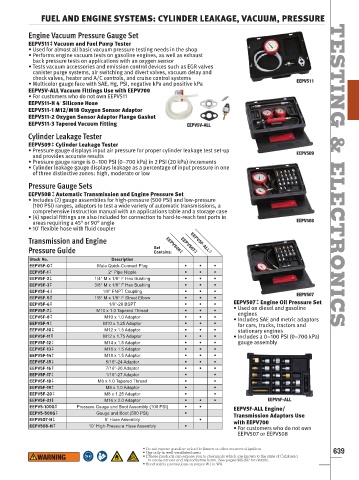

Page 641 - 实耐宝完整US版1500

FUEL AND ENGINE SYSTEMS: CYLINDER LEAKAGE, VACUUM, PRESSURE

Engine Vacuum Pressure Gauge Set
EEPV511 ‡ Vacuum and Fuel Pump Tester
• Used for almost all basic vacuum pressure testing needs in the shop
• Performs engine vacuum tests on gasoline engines, as well as exhaust
back pressure tests on applications with an oxygen sensor
• Tests vacuum accessories and emission control devices such as EGR valves
canister purge systems, air switching and divert valves, vacuum delay and
check valves, heater and A/C controls, and cruise control systems EEPV511 TESTING
• Multicolor gauge face with SAE, Hg, PSI, negative kPa and positive kPa
EEPV5V-ALL Vacuum Fittings Use with EEPV700
• For customers who do not own EEPV511
EEPV511-H 4ʹ Silicone Hose
EEPV511-1 M12/M18 Oxygen Sensor Adaptor
EEPV511-2 Oxygen Sensor Adaptor Flange Gasket
EEPV511-3 Tapered Vacuum Fitting EEPV5V-ALL

Cylinder Leakage Tester
EEPV509 ‡ Cylinder Leakage Tester &
• Pressure gauge displays input air pressure for proper cylinder leakage test set-up EEPV509
and provides accurate results
• Pressure gauge range is 0–100 PSI (0–700 kPa) in 2 PSI (20 kPa) increments
• Cylinder leakage gauge displays leakage as a percentage of input pressure in one
of three distinctive zones: high, moderate or low
Pressure Gauge Sets
EEPV508 ‡ Automatic Transmission and Engine Pressure Set
• Includes (2) gauge assemblies for high-pressure (500 PSI) and low-pressure
(100 PSI) ranges, adaptors to test a wide variety of automatic transmissions, a
comprehensive instruction manual with an applications table and a storage case
• (4) special fittings are also included for connection to hard-to-reach test ports in
areas requiring a 45° or 90° angle EEPV508
• 10ʹ flexible hose with fluid coupler
Transmission and Engine EEPV508 ‡ EEPV5F-ALL ‡ ELECTRONICS
Pressure Guide Set
EEPV507 ‡
Contains:
Stock No. Description
EEPV5F-0 ‡ Male Quick-Connect Plug • • •
EEPV5F-1 ‡ 2ʺ Pipe Nipple • • •
EEPV5F-2 ‡ 1/4ʺ M x 1/8ʺ F Hex Bushing • • •
EEPV5F-3 ‡ 3/8ʺ M x 1/8ʺ F Hex Bushing • • •
EEPV5F-4 ‡ 1/8ʺ FNPT Coupling • • • EEPV507
EEPV5F-5 ‡ 1/8ʺ M x 1/8ʺ F Street Elbow • • •
EEPV5F-6 ‡ 1/8ʺ-28 BSPT • • • EEPV507 ‡ Engine Oil Pressure Set
EEPV5F-7 ‡ M10 x 1.0 Tapered Thread • • • • Used on diesel and gasoline
engines
EEPV5F-8 ‡ M10 x 1.0 Adaptor • • • • Includes SAE and metric adaptors
EEPV5F-9 ‡ M10 x 1.25 Adaptor • • • for cars, trucks, tractors and
EEPV5F-10 ‡ M12 x 1.5 Adaptor • • • stationary engines
EEPV5F-11 ‡ M12 x 1.75 Adaptor • • • • Includes a 0–100 PSI (0–700 kPa)
EEPV5F-12 ‡ M14 x 1.5 Adaptor • • • gauge assembly
EEPV5F-13 ‡ M16 x 1.5 Adaptor • • •
EEPV5F-14 ‡ M18 x 1.5 Adaptor • • •
EEPV5F-15 ‡ 5/16ʺ-24 Adaptor • • •
EEPV5F-16 ‡ 7/16ʺ-20 Adaptor • • •
EEPV5F-17 ‡ 1/16ʺ-27 Adaptor • •
EEPV5F-18 ‡ M8 x 1.0 Tapered Thread • •
EEPV5F-19 ‡ M8 x 1.0 Adaptor • •
EEPV5F-20 ‡ M8 x 1.25 Adaptor • •
EEPV5F-21 ‡ M16 x 2.0 Adaptor • • • EEPV5F-ALL
EEPV5-100G ‡ Pressure Gauge and Boot Assembly (100 PSI) • • EEPV5F-ALL Engine/
EEPV5-500G ‡ Gauge and Boot (500 PSI) • Transmission Adaptors Use
EEPV507-H ‡ 6ʹ Hose Assembly • with EEPV700
EEPV508-H ‡ 10ʹ High-Pressure Hose Assembly •
• For customers who do not own
EEPV507 or EEPV508
• Do not expose gasoline or fuel to flames or other sources of ignition
• Use only in well ventilated area 639
• ‡ These products can expose you to chemicals which are known to the state of California
to cause cancer and reproductive harm. See pages 906-907 for details.
• Read safety precautions on pages W1 to W4
