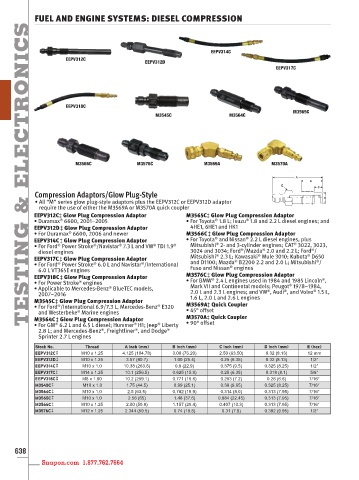

FUEL AND ENGINE SYSTEMS: DIESEL COMPRESSION
ELECTRONICS

EEPV314C
EEPV312C
EEPV312D
EEPV317C

EEPV318C
M3565C
M3545C M3564C

M3566C M3576C M3569A M3570A

Compression Adaptors/Glow Plug-Style
& • All “M” series glow plug-style adaptors plus the EEPV312C or EEPV312D adaptor
require the use of either the M3569A or M3570A quick coupler
EEPV312C‡ Glow Plug Compression Adaptor M3565C‡ Glow Plug Compression Adaptor
• Duramax 6600, 2001–2005 ® ® ® • For Toyota 1.8 L; Isuzu 1.8 and 2.2 L diesel engines; and
®
®
®
TESTING EEPV317C ‡ Glow Plug Compression Adaptor M3576C ‡ Glow Plug Compression Adaptor ® ® ® ® ®
4HE1, 6HE1 and HK1
EEPV312D ‡ Glow Plug Compression Adaptor
• For Duramax 6600, 2006 and newer
M3566C ‡ Glow Plug Compression Adaptor
®
• For Toyota and Nissan 2.2 L diesel engines, plus
®
®
EEPV314C ‡ Glow Plug Compression Adaptor
®
Mitsubishi 2- and 3-cylinder engines; CAT 3022, 3023,
®
®
®
• For Ford Power Stroke /Navistar 7.3 L and VW TDI 1.9
®
®
3024 and 3034; Ford /Mazda 2.0 and 2.2 L; Ford /
diesel engines
Mitsubishi 2.3 L; Kawasaki Mule 3010; Kubota D650
®
®
®
and D1100; Mazda B2200 2.2 and 2.0 L; Mitsubishi /
• For Ford Power Stroke 6.0 L and Navistar /International
®
®
®
Fuso and Nissan engines
®
6.0 L VT365E engines
EEPV318C ‡ Glow Plug Compression Adaptor
®
• For BMW 2.4 L engines used in 1984 and 1985 Lincoln ,
®
• For Power Stroke engines
®
Mark VII and Continental models; Peugot 1978–1984,
®
• Applicable to Mercedes-Benz BlueTEC models,
®
®
2.0 L and 2.3 L engines; and VW , Audi , and Volvo 1.5 L,
2007–2016
1.6 L, 2.0 L and 2.6 L engines
M3545C ‡ Glow Plug Compression Adaptor
®
®
• For Ford /International 6.9/7.3 L, Mercedes-Benz E320
• 45° offset
®
and Westerbeke Marine engines
M3570A‡ Quick Coupler
M3564C ‡ Glow Plug Compression Adaptor
• 90° offset
®
• For GM 6.2 L and 6.5 L diesel; Hummer H1; Jeep Liberty
®
®
®
2.8 L; and Mercedes-Benz , Freightliner , and Dodge M3569A‡ Quick Coupler
®
®
Sprinter 2.7 L engines
Stock No. Thread A inch (mm) B Inch (mm) C inch (mm) D Inch (mm) E (hex)
EEPV312C ‡ M10 x 1.25 4.125 (104.78) 3.00 (76.20) 2.50 (63.50) 0.32 (8.13) 12 mm
EEPV312D ‡ M10 x 1.25 3.57 (90.7) 1.00 (25.4) 0.25 (6.35) 0.32 (8.13) 1/2ʺ
EEPV314C ‡ M10 x 1.0 10.38 (263.6) 0.9 (22.9) 0.375 (9.5) 0.325 (8.25) 1/2ʺ
EEPV317C ‡ M14 x 1.25 10.1 (256.5) 0.625 (15.9) 0.25 (6.35) 0.318 (8.1) 5/8ʺ
EEPV318C ‡ M8 x 1.00 10.2 (259.1) 0.771 (19.6) 0.283 (7.2) 0.26 (6.6) 7/16ʺ
M3545C ‡ M10 x 1.0 1.75 (44.5) 0.99 (25.1) 0.38 (9.65) 0.325 (8.25) 7/16ʺ
M3564C ‡ M10 x 1.0 2.5 (63.5) 0.782 (19.9) 0.314 (8.0) 0.313 (7.95) 7/16ʺ
M3565C ‡ M10 x 1.0 2.56 (65) 1.48 (37.6) 0.884 (22.45) 0.313 (7.95) 7/16ʺ
M3566C ‡ M10 x 1.25 2.00 (50.8) 1.157 (29.4) 0.407 (10.3) 0.313 (7.95) 7/16ʺ
M3576C ‡ M12 x 1.25 2.344 (59.5) 0.74 (18.8) 0.31 (7.9) 0.392 (9.95) 1/2ʺ
638
Snapon.com 1.877.762.7664
