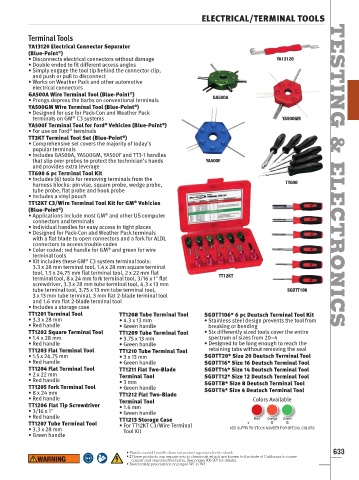

Page 635 - 实耐宝完整US版1500

ELECTRICAL/TERMINAL TOOLS

Terminal Tools
YA13120 Electrical Connector Separator
®
(Blue-Point )
• Disconnects electrical connectors without damage YA13120
• Double ended to fit different access angles
• Simply engage the tool tip behind the connector clip,
and push or pull to disconnect TESTING
• Works on Weather Pack and other automotive
electrical connectors
®
GA500A Wire Terminal Tool (Blue-Point ) GA500A
• Prongs depress the barbs on conventional terminals
®
YA500GM Wire Terminal Tool (Blue-Point )
• Designed for use for Pack-Con and Weather Pack
®
terminals on GM C3 systems YA500GM
®
®
YA500F Terminal Tool for Ford Vehicles (Blue-Point )
• For use on Ford terminals
®
®
TT3KT Terminal Tool Set (Blue-Point )
• Comprehensive set covers the majority of today’s &
popular terminals
• Includes GA500A, YA500GM, YA500F and TT3-1 handles
that slip over probes to protect the technician’s hands YA500F
and provides extra leverage
TT600 6 pc Terminal Tool Kit
• Includes (6) tools for removing terminals from the
harness blocks: pin vise, square probe, wedge probe, TT600
tube probe, flat probe and hook probe
• Includes a vinyl pouch
TT12KT C3/Wire Terminal Tool Kit for GM Vehicles
®
®
(Blue-Point )
• Applications include most GM and other US computer
®
connectors and terminals
• Individual handles for easy access in tight places
• Designed for Pack-Con abd Weather Pack terminals
with a flat blade to open connectors and a fork for ALDL
connectors to access trouble codes ELECTRONICS
• Color coded: red handle for GM and green for wire
®
terminal tools
• Kit includes these GM C3 system terminal tools:
®
3.3 x 28 mm terminal tool, 1.4 x 28 mm square terminal
tool, 1.5 x 24.75 mm flat terminal tool, 2 x 22 mm flat TT12KT
terminal tool, 8 x 24 mm fork terminal tool, 3/16 x 1ʺ flat
screwdriver, 3.3 x 28 mm tube terminal tool, 4.3 x 13 mm
tube terminal tool, 3.75 x 13 mm tube terminal tool, SGDTT106
3 x 13 mm tube terminal, 3 mm flat 2-blade terminal tool
and 1.6 mm flat 2-blade terminal tool
• Includes a storage case
TT1201 Terminal Tool TT1208 Tube Terminal Tool SGDTT106* 6 pc Deutsch Terminal Tool Kit
• 3.3 x 28 mm • 4.3 x 13 mm • Stainless steel design prevents the tool from
• Red handle • Green handle breaking or bending
TT1202 Square Terminal Tool TT1209 Tube Terminal Tool • Six differently sized tools cover the entire
• 1.4 x 28 mm • 3.75 x 13 mm spectrum of sizes from 20–4
• Red handle • Green handle • Designed to be long enough to reach the
TT1203 Flat Terminal Tool TT1210 Tube Terminal Tool retaining tabs without removing the seal
• 1.5 x 24.75 mm • 3 x 13 mm SGDTT20* Size 20 Deutsch Terminal Tool
• Red handle • Green handle SGDTT16* Size 16 Deutsch Terminal Tool
TT1204 Flat Terminal Tool TT1211 Flat Two-Blade SGDTT14* Size 14 Deutsch Terminal Tool
• 2 x 22 mm Terminal Tool SGDTT12* Size 12 Deutsch Terminal Tool
• Red handle • 3 mm SGDTT8* Size 8 Deutsch Terminal Tool
TT1205 Fork Terminal Tool • Green handle SGDTT4* Size 4 Deutsch Terminal Tool
• 8 x 24 mm TT1212 Flat Two-Blade
• Red handle Terminal Tool Colors Available
TT1206 Flat Tip Screwdriver • 1.6 mm
• 3/16 x 1ʺ • Green handle
• Red handle TT1213 Storage Case Red Orange Green
TT1207 Tube Terminal Tool • For TT12KT C3/Wire Terminal * O G
• 3.3 x 28 mm Tool Kit ADD SUFFIX TO STOCK NUMBER FOR SPECIAL COLORS
• Green handle
• Plastic coated handle does not protect against electric shock 633
• ‡ These products can expose you to chemicals which are known to the state of California to cause
cancer and reproductive harm. See pages 906-907 for details.
• Read safety precautions on pages W1 to W4
