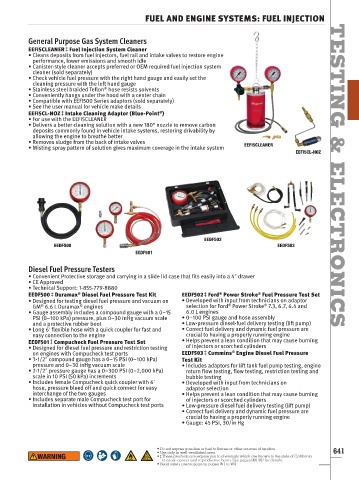

FUEL AND ENGINE SYSTEMS: FUEL INJECTION

General Purpose Gas System Cleaners
EEFI5CLEANER ‡ Fuel Injection System Cleaner
• Cleans deposits from fuel injectors, fuel rail and intake valves to restore engine
performance, lower emissions and smooth idle
• Canister-style cleaner accepts preferred or OEM required fuel injection system
cleaner (sold separately)
• Check vehicle fuel pressure with the right hand gauge and easily set the TESTING
cleaning pressure with the left hand gauge
®
• Stainless steel braided Teflon hose resists solvents
• Conveniently hangs under the hood with a center chain
• Compatible with EEFI500 Series adaptors (sold separately)
• See the user manual for vehicle make details
EEFI5CL-NOZ ‡ Intake Cleaning Adaptor (Blue-Point )
®
• For use with the EEFI5CLEANER
• Delivers a better cleaning solution with a new 180° nozzle to remove carbon
deposits commonly found in vehicle intake systems, restoring drivability by
allowing the engine to breathe better
• Removes sludge from the back of intake valves EEFI5CLEANER &
• Misting spray pattern of solution gives maximum coverage in the intake system
EEFI5CL-NOZ

EEDF502
EEDF500 EEDF503 ELECTRONICS
EEDF501

Diesel Fuel Pressure Testers
• Convenient Protective storage and carrying in a slide lid case that fits easily into a 4ʺ drawer
• CE Approved
• Technical Support: 1-855-779-8880
®
®
®
EEDF500 ‡ Duramax Diesel Fuel Pressure Test Kit EEDF502 ‡ Ford Power Stroke Fuel Pressure Test Set
• Designed for testing diesel fuel pressure and vacuum on • Developed with input from technicians on adaptor
®
®
®
GM 6.6 L Duramax engines selection for Ford Power Stroke 7.3, 6.7, 6.4 and
®
• Gauge assembly includes a compound gauge with a 0–15 6.0 L engines
PSI (0–100 kPa) pressure, plus 0–30 inHg vacuum scale • 0–100 PSI gauge and hose assembly
and a protective rubber boot • Low-pressure diesel-fuel delivery testing (lift pump)
• Long 6ʹ flexible hose with a quick coupler for fast and • Correct fuel delivery and dynamic fuel pressure are
easy connection to the engine crucial to having a properly running engine
EEDF501 ‡ Compucheck Fuel Pressure Test Set • Helps prevent a lean condition that may cause burning
• Designed for diesel fuel pressure and restriction testing of injectors or scorched cylinders
®
on engines with Compucheck test ports EEDF503 ‡ Cummins Engine Diesel Fuel Pressure
• 3-1/2ʺ compound gauge has a 0–15 PSI (0–100 kPa) Test Kit
pressure and 0–30 inHg vacuum scale • Includes adaptors for lift tank fuel pump testing, engine
• 2-1/2ʺ pressure gauge has a 0–300 PSI (0–2,000 kPa) return flow testing, flow testing, restriction testing and
scale in 10 PSI (50 kPa) increments bubble testing
• Includes female Compucheck quick coupler with 6ʹ • Developed with input from technicians on
hose, pressure bleed off and quick connect for easy adaptor selection
interchange of the two gauges • Helps prevent a lean condition that may cause burning
• Includes separate male Compucheck test port for of injectors or scorched cylinders
installation in vehicles without Compucheck test ports • Low-pressure diesel fuel delivery testing (lift pump)
• Correct fuel delivery and dynamic fuel pressure are
crucial to having a properly running engine
• Gauge: 45 PSI, 30/in Hg
• Do not expose gasoline or fuel to flames or other sources of ignition
• Use only in well ventilated area 641
• ‡ These products can expose you to chemicals which are known to the state of California
to cause cancer and reproductive harm. See pages 906-907 for details.
• Read safety precautions on pages W1 to W4
