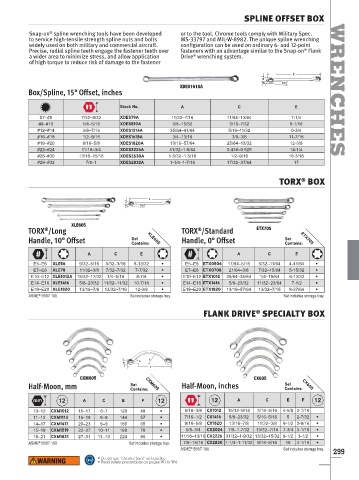

P. 301
SPLINE OFFSET BOX
Snap-on spline wrenching tools have been developed or to the tool. Chrome tools comply with Military Spec.
®
to service high-tensile strength spline nuts and bolts MS-33797 and MIL-W-8982. The unique spline wrenching
widely used on both military and commercial aircraft. configuration can be used on ordinary 6- and 12-point
Precise, radial spline teeth engage the fastener teeth over fasteners with an advantage similar to the Snap-on Flank
®
a wider area to minimize stress, and allow application Drive wrenching system.
®
of high torque to reduce risk of damage to the fastener
XDES1618A
Box/Spline, 15° Offset, inches WRENCHES
Stock No. A C E
#7–#9 7/32–9/32 XDES79A 11/32–7/16 11/64–13/64 7-1/4
#8–#10 1/4–5/16 XDES810A 3/8–15/32 3/16–7/32 8-1/16
#12–#14 3/8–7/16 XDES1214A 35/64–41/64 5/16–11/32 9-3/4
#16–#18 1/2–9/16 XDES1618A 3/4–13/16 3/8–3/8 11-7/16
#18–#20 9/16–5/8 XDES1820A 13/16–57/64 25/64–13/32 12-3/8
#22–#24 11/16–3/4 XDES2224A 31/32–1-5/64 0.438–0.525 14-1/4
#26–#30 13/16–15/16 XDES2630A 1-5/32–1-5/16 1/2–9/16 16-3/16
#28–#32 7/8–1 XDES2832A 1-1/4–1-7/16 17/32–37/64 17
®
TORX BOX
XLE605
®
®
TORX /Long TORX /Standard ETX705
Handle, 10° Offset Set XLE605 Handle, 0° Offset Set ETX705
Contains:
Contains:
A C E A C E
E5–E6 XLE56 9/32–5/16 5/32–3/16 6-13/32 • E5–E6 ETX0506 17/64–5/16 5/32–11/64 4-41/64 •
E7–E8 XLE78 11/32–3/8 7/32–7/32 7-7/32 • E7–E8 ETX0708 21/64–3/8 7/32–15/64 5-15/32 •
E10–E12 XLE1012A 15/32–17/32 1/4–5/16 8-7/8 • E10–E12 ETX1012 29/64–35/64 1/4–19/64 6-13/32 •
E14–E16 XLE1416 5/8–23/32 11/32–11/32 10-7/16 • E14–E16 ETX1416 5/8–23/32 11/32–23/64 7-1/2 •
E18–E20 XLE1820 13/16–7/8 13/32–7/16 12-3/8 • E18–E20 ETX1820 13/16–57/64 13/32–7/16 8-37/64 •
ASME B107.100 Set includes storage tray. Set includes storage tray.
®
®
FLANK DRIVE SPECIALTY BOX
CXM605 CX605
Half-Moon, mm Set CXM605 Half-Moon, inches Set CX605
Contains:
Contains:
A C E F A C E F
10–12 CXM1012 15–17 6–7 128 48 • 5/16–3/8 CX1012 15/32–9/16 3/16–5/16 4-5/8 2-1/16
11–13 CXM1113 16–18 8–8 144 57 • 7/16–1/2 CX1416 5/8–23/32 5/16–5/16 5 2-7/32 •
14–17 CXM1417 20–23 9–9 166 65 • 9/16–5/8 CX1820 13/16–7/8 11/32–3/8 6-1/2 2-9/16 •
15–19 CXM1519 22–27 10–11 198 78 • 5/8–3/4 CX2024 7/8–1-7/32 13/32–7/16 7-3/4 3-1/16 •
18–21 CXM1821 27–31 11–13 224 86 • 11/16–13/16 CX2226 31/32–1-9/32 13/32–15/32 8-1/2 3-1/2 •
ASME B107.100 Set includes storage tray. 7/8–15/16 CX2830 1-1/4–1-11/32 9/16–9/16 10 4-1/16 •
®
ASME B107.100 Set includes storage tray.
®
299
• Do not use “cheater bars” on handles
• Read safety precautions on pages W1 to W4
