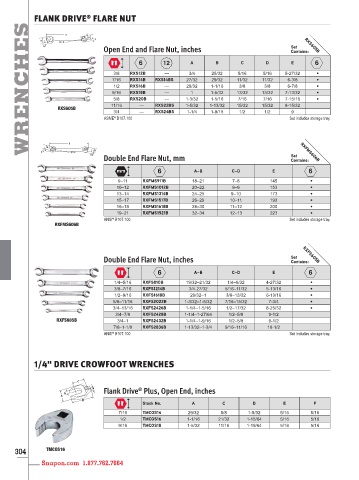

FLANK DRIVE FLARE NUT
®
WRENCHES

Open End and Flare Nut, inches Set RXS605B
Contains:
A B C D E
3/8 RXS12B — 3/4 25/32 5/16 5/16 5-27/32 •
7/16 RXS14B RXS14BS 27/32 29/32 11/32 11/32 6-3/8 •
1/2 RXS16B — 29/32 1-1/16 3/8 3/8 6-7/8 •
9/16 RXS18B — 1 1-5/32 13/32 13/32 7-13/32 •
5/8 RXS20B — 1-3/32 1-5/16 7/16 7/16 7-15/16 •
11/16 — RXS22BS 1-5/32 1-13/32 15/32 15/32 8-15/32
RXS605B
3/4 — RXS24BS 1-1/4 1-9/16 1/2 1/2 9
ASME B107.100 Set includes storage tray.
®

Double End Flare Nut, mm Set RXFMS606B
Contains:
A–B C–D E
9–11 RXFMS911B 18–21 7–8 145 •
10–12 RXFMS1012B 20–22 8–9 153 •
13–14 RXFMS1314B 24–25 9–10 173 •
15–17 RXFMS1517B 26–29 10–11 193 •
16–18 RXFMS1618B 28–30 11–12 200 •
19–21 RXFMS1921B 32–34 12–13 223 •
ANSI B107.100 Set includes storage tray.
®
RXFMS606B

Double End Flare Nut, inches Set RXFS605B
Contains:
A–B C–D E
1/4–5/16 RXFS810B 19/32–21/32 1/4–9/32 4-27/32 •
3/8–7/16 RXFS1214B 3/4-27/32 5/16–11/32 5-13/16 •
1/2–9/16 RXFS1618B 29/32–1 3/8–13/32 6-13/16 •
5/8–11/16 RXFS2022B 1-3/32–1-5/32 7/16–15/32 7-3/4 •
3/4–13/16 RXFS2426B 1-1/4–1-5/16 1/2–17/32 8-25/32 •
3/4–7/8 RXFS2428B 1-1/4–1-27/64 1/2–5/8 9-1/2
RXFS605B 3/4–1 RXFS2432B 1-1/4–1-9/16 1/2–5/8 9-1/2
7/8–1-1/8 RXFS2836B 1-13/32–1-3/4 9/16–11/16 10-1/2
ANSI B107.100 Set includes storage tray.
®

1/4" DRIVE CROWFOOT WRENCHES

®
Flank Drive Plus, Open End, inches
Stock No. A C D E F
7/16 TMCOS14 29/32 5/8 1-5/32 5/16 5/16
1/2 TMCOS16 1-1/16 21/32 1-15/64 5/16 5/16
9/16 TMCOS18 1-5/32 11/16 1-19/64 5/16 5/16

304 TMCOS16
