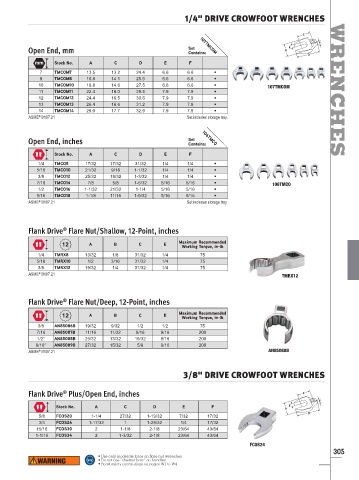

Page 307 - 实耐宝完整US版1500

1/4" DRIVE CROWFOOT WRENCHES

Open End, mm Set 107TMCOM
Contains:
Stock No. A C D E F
7 TMCOM7 13.5 13.2 24.4 6.6 6.6 •
8 TMCOM8 16.8 14.1 25.9 6.6 6.6 •
10 TMCOM10 19.8 14.6 27.5 6.6 6.6
•
107TMCOM
11 TMCOM11 22.4 16.0 29.4 7.9 7.9 • WRENCHES
12 TMCOM12 24.4 16.5 30.6 7.9 7.9 •
13 TMCOM13 26.4 16.6 31.2 7.9 7.9 •
14 TMCOM14 29.0 17.7 32.9 7.9 7.9 •
ASME B107.21 Set includes storage tray.
®

Open End, inches Set 106TMCO
Contains:
Stock No. A C D E F
1/4 TMCO8 17/32 17/32 31/32 1/4 1/4 •
5/16 TMCO10 21/32 9/16 1-1/32 1/4 1/4 •
3/8 TMCO12 25/32 19/32 1-3/32 1/4 1/4 •
7/16 TMCO14 7/8 5/8 1-5/32 5/16 5/16 • 106TMCO
1/2 TMCO16 1-1/32 21/32 1-1/4 5/16 5/16 •
9/16 TMCO18 1-1/8 11/16 1-9/32 5/16 5/16 •
ASME B107.21 Set includes storage tray.
®

®
Flank Drive Flare Nut/Shallow, 12-Point, inches
Maximum Recommended
A B C E
Working Torque, in-lb
1/4 TMRX8 13/32 1/8 31/32 1/4 75
5/16 TMRX10 1/2 3/16 31/32 1/4 75
3/8 TMRX12 19/32 1/4 31/32 1/4 75
®
ASME B107.21
TMRX12

®
Flank Drive Flare Nut/Deep, 12-Point, inches
Maximum Recommended
A B C E
Working Torque, in-lb
3/8 AN85086B 19/32 9/32 1/2 1/2 75
7/16 AN85087B 11/16 11/32 9/16 9/16 200
1/2ʺ AN85088B 25/32 13/32 19/32 9/16 200
9/16ʺ AN85089B 27/32 15/32 5/8 9/16 200
®
ASME B107.21 AN85088B

3/8" DRIVE CROWFOOT WRENCHES

Flank Drive Plus/Open End, inches
®
Stock No. A C D E F
5/8 FCOS20 1-1/4 27/32 1-19/32 7/32 17/32
3/4 FCOS24 1-17/32 1 1-29/32 1/4 17/32
15/16 FCOS30 2 1-1/8 2-1/8 23/64 43/64
1-1/16 FCOS34 2 1-3/32 2-1/8 23/64 43/64
FCOS24
305
• Use only moderate force on flare nut wrenches
• Do not use “cheater bars” on handles
• Read safety precautions on pages W1 to W4
