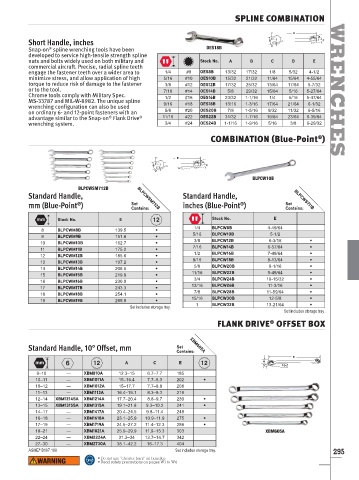

SPLINE COMBINATION

Short Handle, inches
®
Snap-on spline wrenching tools have been OES18B
developed to service high-tensile strength spline
nuts and bolts widely used on both military and Stock No. A B C D E
commercial aircraft. Precise, radial spline teeth
engage the fastener teeth over a wider area to 1/4 #8 OES8B 13/32 17/32 1/8 5/32 4-1/2
minimize stress, and allow application of high 5/16 #10 OES10B 15/32 21/32 11/64 15/64 4-55/64
torque to reduce risk of damage to the fastener 3/8 #12 OES12B 17/32 25/32 13/64 17/64 5-7/32
or to the tool. 7/16 #14 OES14B 5/8 29/32 15/64 5/16 5-27/64 WRENCHES
Chrome tools comply with Military Spec. 1/2 #16 OES16B 23/32 1-1/16 1/4 5/16 5-47/64
MS-33787 and MIL-W-8982. The unique spline 9/16 #18 OES18B 13/16 1-3/16 17/64 21/64 6-1/32
wrenching configuration can also be used
on ordinary 6- and 12-point fasteners with an 5/8 #20 OES20B 7/8 1-5/16 9/32 11/32 6-5/16
®
®
advantage similar to the Snap-on Flank Drive 11/16 #22 OES22B 31/32 1-7/16 19/64 23/64 6-39/64
wrenching system. 3/4 #24 OES24B 1-1/16 1-9/16 5/16 3/8 6-29/32
®
COMBINATION (Blue-Point )

BLPCW10B
BLPCWSM712B
Standard Handle, BLPCWSM712B Standard Handle, BLPCWS711B
mm (Blue-Point ) Set inches (Blue-Point ) Set
®
®
Contains:
Contains:
Stock No. E Stock No. E
1/4 BLPCW8B 4-49/64
8 BLPCWM8B 139.5 •
9 BLPCWM9B 151.6 • 5/16 BLPCW10B 5-1/2
10 BLPCWM10B 162.7 • 3/8 BLPCW12B 6-3/16 •
11 BLPCWM11B 175.2 • 7/16 BLPCW14B 6-57/64 •
12 BLPCWM12B 185.6 • 1/2 BLPCW16B 7-49/64 •
13 BLPCWM13B 197.2 • 9/16 BLPCW18B 8-13/64 •
14 BLPCWM14B 208.5 • 5/8 BLPCW20B 9-1/16 •
15 BLPCWM15B 219.9 • 11/16 BLPCW22B 9-49/64 •
16 BLPCWM16B 230.0 • 3/4 BLPCW24B 10-15/32 •
17 BLPCWM17B 243.3 • 13/16 BLPCW26B 11-3/16 •
18 BLPCWM18B 254.1 • 7/8 BLPCW28B 11-59/64 •
19 BLPCWM19B 265.9 • 15/16 BLPCW30B 12-5/8 •
Set includes storage tray. 1 BLPCW32B 13-21/64 •
Set includes storage tray.
FLANK DRIVE OFFSET BOX
®

Standard Handle, 10° Offset, mm Set XBM605A
Contains:

A C E
8–10 — XBM810A 12.3–15 6.7–7.7 185
10–11 — XBM1011A 15–16.4 7.7–8.3 202 •
10–12 — XBM1012A 15–17.7 7.7–8.8 208
11–13 — XBM1113A 16.4–19.1 8.3–9.3 219
12–14 XBM1214SA XBM1214A 17.7–20.4 8.8–9.7 230 •
13–15 XBM1315SA XBM1315A 19.1–21.8 9.3–10.2 241 •
14–17 — XBM1417A 20.4–24.5 9.8–11.4 248
16–18 — XBM1618A 23.1–25.9 10.9–11.9 275 •
17–19 — XBM1719A 24.5–27.2 11.4–12.3 286 •
18–21 — XBM1821A 25.9–29.9 11.9–13.3 303 XBM605A
22–24 — XBM2224A 31.3–34 13.7–14.7 342
27–30 — XBM2730A 38.1–42.2 16–17.3 404
®
ASME B107.100 Set includes storage tray. 295
• Do not use “cheater bars” on handles
• Read safety precautions on pages W1 to W4
