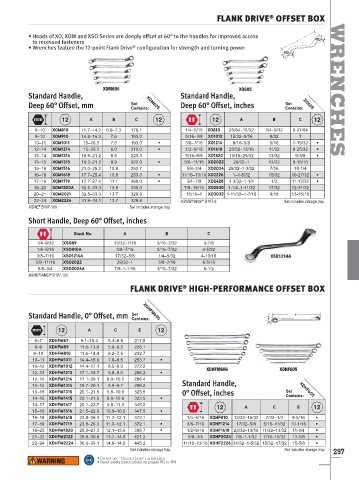

FLANK DRIVE OFFSET BOX

• Heads of XO, XOM and XSO Series are deeply offset at 60° to the handles for improved access
to recessed fasteners
• Wrenches feature the 12-point Flank Drive configuration for strength and turning power
®

XOM605 XO605 WRENCHES
Standard Handle, Standard Handle,
Deep 60° Offset, mm Set XOM605 Deep 60° Offset, inches Set XO605
Contains:
Contains:
A B C A B C
8–10 XOM810 11.7–14.2 6.9–7.3 178.1 1/4–5/16 XO810 25/64–15/32 1/4–9/32 6-27/64
9–10 XOM910 14.2–16.3 7.6 193.0 5/16–3/8 XO1012 15/32–9/16 9/32 7
10–11 XOM1011 15–16.3 7.6 193.0 • 3/8–7/16 XO1214 9/16–5/8 5/16 7-19/32 •
12–14 XOM1214 15–20.3 9.0 210.0 • 1/2–9/16 XO1618 23/32–13/16 11/32 8-25/32 •
13–14 XOM1314 18.8–21.2 8.9 223.3 9/16–5/8 XO1820 13/16–29/32 13/32 9-3/8 •
13–15 XOM1315 16.3–21.2 8.9 223.0 • 5/8–11/16 XO2022 29/32–1 13/32 9-15/16
15–16 XOM1516 23.0–25.2 10.8 252.7 5/8–3/4 XO2024 29/32–1-3/32 7/16 10-1/4
16–18 XOM1618 17.7–25.4 10.8 253.0 • 11/16–13/16 XO2226 1–1-5/32 15/32 10-27/32 •
17–19 XOM1719 17.7–27.4 11.1 260.0 • 3/4–7/8 XO2428 1-3/32–1-1/4 1/2 11-13/32 •
18–20 XOM1820A 32.5–33.3 13.8 330.0 7/8–15/16 XO2830 1-1/4–1-11/32 17/32 12-31/32
20–21 XOM2021 32.5–33.3 13.7 329.6 15/16–1 XO3032 1-11/32–1-7/16 9/16 13-15/16
22–24 XOM2224 31.9–34.1 13.7 329.6 ASME /ANSI B107.6 Set includes storage tray.
®
®
®
ASME B107.100 Set includes storage tray.
Short Handle, Deep 60° Offset, inches
Stock No. A B C
1/4–9/32 XSO89 13/32–7/16 3/16–7/32 3-7/8
1/4–5/16 XSO810A 3/8–7/16 3/16–7/32 4-5/32
3/8–7/16 XSO1214A 17/32–5/8 1/4–9/32 4-13/16 XSO1214A
5/8–11/16 XSO2022 29/32–1 3/8–7/16 6-5/16
5/8–3/4 XSO2024A 7/8–1-1/16 3/16–7/32 6-1/2
ASME /ANSI B107.100
®
®
FLANK DRIVE HIGH-PERFORMANCE OFFSET BOX
®

Standard Handle, 0° Offset, mm Set XDHFM606
Contains:
A C E
6–7 XDHFM67 9.1–10.4 5.3–5.8 211.5
8–9 XDHFM89 11.6–13.0 5.8–6.2 226.1
8–10 XDHFM810 11.6–14.4 6.2–7.6 232.7
10–11 XDHFM1011 14.4–15.6 7.6–8.5 253.7 •
10–12 XDHFM1012 14.4–17.1 8.5–9.0 272.2
XDHFM606 XDHF605
12–13 XDHFM1213 17.1–18.7 9.0–9.0 286.2 •
12–14 XDHFM1214 17.1–20.1 9.0–10.2 298.4
13–14 XDHFM1314 18.7–20.1 9.0–9.7 299.2 Standard Handle,
13–15 XDHFM1315 20.1–21.5 9.8–10.9 323.5 0° Offset, inches Set XDHF605
Contains:
14–15 XDHFM1415 20.1–21.5 9.8–10.9 323.5 •
14–17 XDHFM1417 20.1–23.7 9.8–11.3 345.0
A C E
15–16 XDHFM1516 21.5–22.6 10.9–10.9 347.5 •
16–18 XDHFM1618 23.8–26.3 11.3–12.1 372.1 1/4–5/16 XDHF810 13/32–15/32 7/32–1/4 8-5/16 •
17–19 XDHFM1719 23.8–26.3 11.3–12.1 372.1 • 3/8–7/16 XDHF1214 17/32–5/8 5/16–11/32 10-1/16 •
18–20 XDHFM1820 25.0–27.3 12.1–13.6 395.7 • 1/2–9/16 XDHF1618 23/32–13/16 11/32–13/32 11-3/4 •
21–22 XDHFM2122 28.8–30.6 13.7–14.6 421.2 5/8–3/4 XDHF2024 7/8–1-1/32 7/16–15/32 13-5/8 •
22–24 XDHFM2224 30.6–33.1 14.0–14.9 445.2 11/16–13/16 XDHF2226 31/32–1-5/32 15/32–17/32 15-5/8 •
Set includes storage tray. Set includes storage tray. 297
• Do not use “cheater bars” on handles
• Read safety precautions on pages W1 to W4
