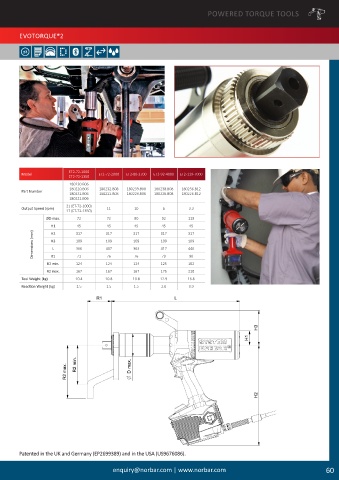

POWERED TORQUE TOOLS
EVOTORQUE®2
Model ET2-72-1000 ET2-72-2000 ET2-80-2700 ET2-92-4000 ET2-119-7000
ET2-72-1350
180230�B06
Part Number 180220�B06 180232�B08 180239�B08 180238�B08 180236�B12
180231�B06 180222�B08 180229�B08 180228�B08 180226�B12
180221�B06
Output Speed (rpm) 21 (ET-72-1000) 11 10 6 3�3
17 (ET-72-1350)
ØD max. 72 72 80 92 119
H1 317 317 317 317 317
45
45
45
45
45
Dimensions (mm) H3 109 109 109 109 109
H2
363
407
417
440
L
366
R1
76
90
70
76
71
R2 min� 124 124 124 125 162
R2 max. 167 167 167 175 210
Tool Weight (kg) 10�4 10�8 10�8 12�9 16�8
Reaction Weight (kg) 1.5 1.5 1.5 2�6 3�9
Patented in the UK and Germany (EP2699389) and in the USA (US9676086).
