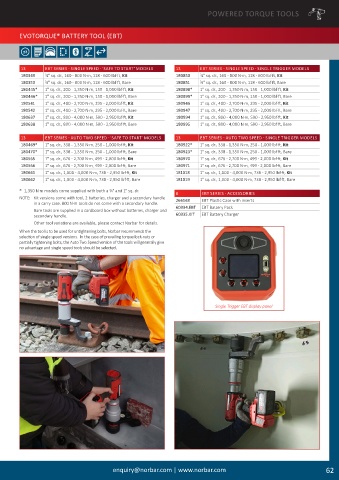

Page 63 - 诺霸英文2022

POWERED TORQUE TOOLS

EVOTORQUE® BATTERY TOOL (EBT)

13 EBT SERIES - SINGLE SPEED - 'SAFE TO START' MODELS 13 EBT SERIES - SINGLE SPEED - SINGLE TRIGGER MODELS
180349 3 ∕ 4" sq. dr., 160 - 800 N·m, 118 - 600 lbf·ft, Kit 180850 3 ∕ 4" sq. dr., 160 - 800 N·m, 118 - 600 lbf·ft, Kit
180350 3 ∕ 4" sq. dr., 160 - 800 N·m, 118 - 600 lbf·ft, Bare 180851 3 ∕ 4" sq. dr., 160 - 800 N·m, 118 - 600 lbf·ft, Bare
180445* 1" sq. dr., 200 - 1,350 N·m, 150 - 1,000 lbf·ft, Kit 180898* 1" sq. dr., 200 - 1,350 N·m, 150 - 1,000 lbf·ft, Kit
180446* 1" sq. dr., 200 - 1,350 N·m, 150 - 1,000 lbf·ft, Bare 180899* 1" sq. dr., 200 - 1,350 N·m, 150 - 1,000 lbf·ft, Bare
180541 1" sq. dr., 400 - 2,700 N·m, 295 - 2,000 lbf·ft, Kit 180946 1" sq. dr., 400 - 2,700 N·m, 295 - 2,000 lbf·ft, Kit
180542 1" sq. dr., 400 - 2,700 N·m, 295 - 2,000 lbf·ft, Bare 180947 1" sq. dr., 400 - 2,700 N·m, 295 - 2,000 lbf·ft, Bare
180637 1" sq. dr., 800 - 4,000 N·m, 590 - 2,950 lbf·ft, Kit 180994 1" sq. dr., 800 - 4,000 N·m, 590 - 2,950 lbf·ft, Kit
180638 1" sq. dr., 800 - 4,000 N·m, 590 - 2,950 lbf·ft, Bare 180995 1" sq. dr., 800 - 4,000 N·m, 590 - 2,950 lbf·ft, Bare

13 EBT SERIES - AUTO TWO SPEED - 'SAFE TO START' MODELS 13 EBT SERIES - AUTO TWO SPEED - SINGLE TRIGGER MODELS
180469* 1" sq. dr., 338 - 1,350 N·m, 250 - 1,000 lbf·ft, Kit 180922* 1" sq. dr., 338 - 1,350 N·m, 250 - 1,000 lbf·ft, Kit
180470* 1" sq. dr., 338 - 1,350 N·m, 250 - 1,000 lbf·ft, Bare 180923* 1" sq. dr., 338 - 1,350 N·m, 250 - 1,000 lbf·ft, Bare
180565 1" sq. dr., 676 - 2,700 N·m, 499 - 2,000 lbf·ft, Kit 180970 1" sq. dr., 676 - 2,700 N·m, 499 - 2,000 lbf·ft, Kit
180566 1" sq. dr., 676 - 2,700 N·m, 499 - 2,000 lbf·ft, Bare 180971 1" sq. dr., 676 - 2,700 N·m, 499 - 2,000 lbf·ft, Bare
180661 1" sq. dr., 1,000 - 4,000 N·m, 738 - 2,950 lbf·ft, Kit 181018 1" sq. dr., 1,000 - 4,000 N·m, 738 - 2,950 lbf·ft, Kit
180662 1" sq. dr., 1,000 - 4,000 N·m, 738 - 2,950 lbf·ft, Bare 181019 1" sq. dr., 1,000 - 4,000 N·m, 738 - 2,950 lbf·ft, Bare
* 1,350 N·m models come supplied with both a ∕ 4" and 1" sq� dr� 8 EBT SERIES - ACCESSORIES

3
NOTE: Kit versions come with tool, 2 batteries, charger and a secondary handle 266148 EBT Plastic Case with inserts
in a carry case. 800 N·m tools do not come with a secondary handle.
Bare tools are supplied in a cardboard box without batteries, charger and 60334.EBT EBT Battery Pack
secondary handle� 60335.KIT EBT Battery Charger
Other tool variations are available, please contact Norbar for details.
When the tool is to be used for untightening bolts, Norbar recommends the
selection of single speed versions. In the case of prevailing torque lock-nuts or
partially tightening bolts, the Auto Two Speed version of the tools will generally give
no advantage and single speed tools should be selected�

Single Trigger EBT display panel
