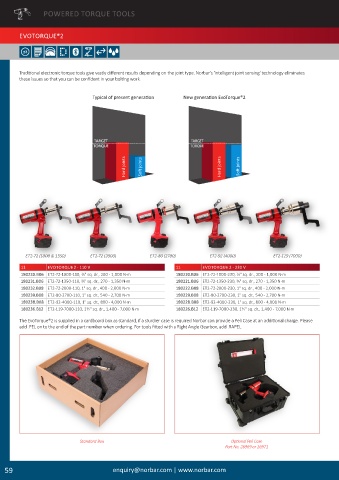

POWERED TORQUE TOOLS

EVOTORQUE®2

Traditional electronic torque tools give vastly different results depending on the joint type. Norbar’s 'intelligent joint sensing' technology eliminates
these issues so that you can be confident in your bolting work.

Typical of present generation New generation EvoTorque®2

Hard joints Soft joints Hard joints Soft joints

ET2-72 (1000 & 1350) ET2-72 (2000) ET2-80 (2700) ET2-92 (4000) ET2-119 (7000)
11 EVOTORQUE 2 - 110 V 11 EVOTORQUE 2 - 230 V

180230.B06 ET2-72-1000-110, ∕ 4" sq. dr., 200 - 1,000 N·m 180220.B06 ET2-72-1000-230, ∕ 4" sq. dr., 200 - 1,000 N·m
3
3
180231.B06 ET2-72-1350-110, ∕ 4" sq. dr., 270 - 1,350 N·m 180221.B06 ET2-72-1350-230, ∕ 4" sq. dr., 270 - 1,350 N·m
3
3
180232.B08 ET2-72-2000-110, 1" sq. dr., 400 - 2,000 N·m 180222.B08 ET2-72-2000-230, 1" sq. dr., 400 - 2,000 N·m
180239.B08 ET2-80-2700-110, 1" sq. dr., 540 - 2,700 N·m 180229.B08 ET2-80-2700-230, 1" sq. dr., 540 - 2,700 N·m
180238.B08 ET2-92-4000-110, 1" sq. dr., 800 - 4,000 N·m 180228.B08 ET2-92-4000-230, 1" sq. dr., 800 - 4,000 N·m
1
180236.B12 ET2-119-7000-110, 1 ∕ 2" sq. dr., 1,400 - 7,000 N·m 180226.B12 ET2-119-7000-230, 1 ∕ 2" sq. dr., 1,400 - 7,000 N·m
1
The EvoTorque®2 is supplied in a cardboard box as standard, if a sturdier case is required Norbar can provide a Peli Case at an additional charge. Please
add .PEL on to the end of the part number when ordering. For tools fitted with a Right Angle Gearbox, add .RAPEL.

Standard Box Optional Peli Case
Part No. 26969 or 26971
