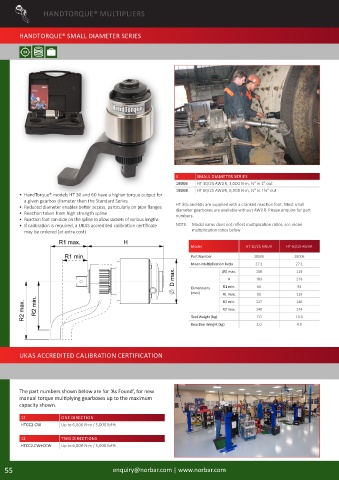

HANDTORQUE® MULTIPLIERS

HANDTORQUE® SMALL DIAMETER SERIES

4 SMALL DIAMETER SERIES
18006 HT 30/25 AWUR, 3,000 N�m, ∕ 2" in 1" out
1
18008 HT 60/25 AWUR, 6,000 N�m, ∕ 2" in 1 ∕ 2" out
1
1

• HandTorque® models HT 30 and 60 have a higher torque output for

a given gearbox diameter than the Standard Series

• Reduced diameter enables better access, particularly on pipe flanges HT 30s and 60s are supplied with a cranked reaction foot. Most small

• Reaction taken from high strength spline diameter gearboxes are available without AWUR. Please enquire for part
numbers�

• Reaction foot can slide on the spline to allow sockets of various lengths
• If calibration is required, a UKAS accredited calibration certificate NOTE: Model name does not reflect multiplication ratios, see mean
may be ordered (at extra cost) multiplication ratios below
Model HT 30/25 AWUR HT 60/25 AWUR
Part Number 18006 18008
Mean Multiplication Ratio 27:1 27:1
ØD max. 108 119
H 183 218
Dimensions R1 min� 60 94
(mm) R1 max. 88 119
R2 min� 117 146
R2 max. 140 174
Tool Weight (kg) 7�0 10�6
Reaction Weight (kg) 2�0 4�0
UKAS ACCREDITED CALIBRATION CERTIFICATION

The part numbers shown below are for ‘As Found’, for new
manual torque multiplying gearboxes up to the maximum
capacity shown.

12 ONE DIRECTION
HTCC2�CW Up to 6,000 N�m / 5,000 lbf�ft

12 TWO DIRECTIONS
HTCC2�CW+CCW Up to 6,000 N�m / 5,000 lbf�ft

55 enquiry@norbar�com | www�norbar�com
