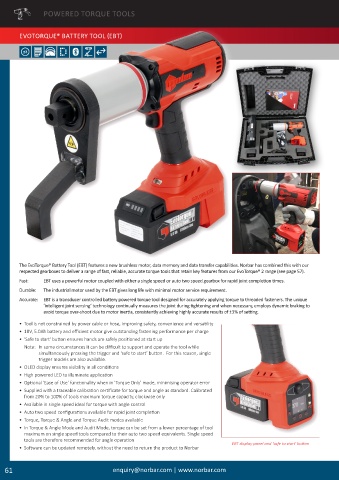

Page 62 - 诺霸英文2022

POWERED TORQUE TOOLS

EVOTORQUE® BATTERY TOOL (EBT)

The EvoTorque® Battery Tool (EBT) features a new brushless motor, data memory and data transfer capabilities. Norbar has combined this with our
respected gearboxes to deliver a range of fast, reliable, accurate torque tools that retain key features from our EvoTorque® 2 range (see page 57).
Fast: EBT uses a powerful motor coupled with either a single speed or auto two speed gearbox for rapid joint completion times.
Durable: The industrial motor used by the EBT gives long life with minimal motor service requirement.
Accurate: EBT is a transducer controlled battery powered torque tool designed for accurately applying torque to threaded fasteners. The unique
‘intelligent joint sensing’ technology continually measures the joint during tightening and when necessary, employs dynamic braking to
avoid torque over-shoot due to motor inertia, consistently achieving highly accurate results of ±3% of setting.
• Tool is not constrained by power cable or hose, improving safety, convenience and versatility
• 18V, 5.0Ah battery and efficient motor give outstanding fastening performance per charge
• 'Safe to start' button ensures hands are safely positioned at start up
Note: In some circumstances it can be difficult to support and operate the tool while
simultaneously pressing the trigger and ‘safe to start’ button. For this reason, single
trigger models are also available�
• OLED display ensures visibility in all conditions
• High powered LED to illuminate application
• Optional 'Ease of Use' functionality when in 'Torque Only' mode, minimising operator error
• Supplied with a traceable calibration certificate for torque and angle as standard. Calibrated
from 20% to 100% of tools maximum torque capacity, clockwise only
• Available in single speed ideal for torque with angle control
• Auto two speed configurations available for rapid joint completion
• Torque, Torque & Angle and Torque Audit modes available
• In Torque & Angle Mode and Audit Mode, torque can be set from a lower percentage of tool
maximum on single speed tools compared to their auto two speed equivalents� Single speed
tools are therefore recommended for angle operation
EBT display panel and 'safe to start' button
• Software can be updated remotely, without the need to return the product to Norbar

61 enquiry@norbar�com | www�norbar�com
