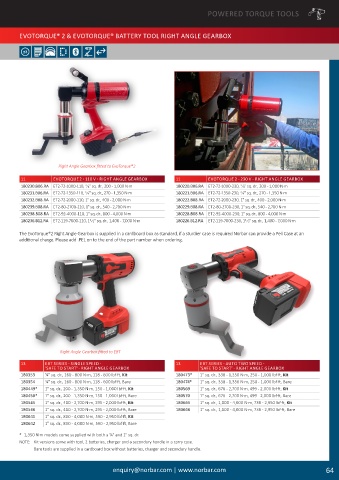

POWERED TORQUE TOOLS

EVOTORQUE® 2 & EVOTORQUE® BATTERY TOOL RIGHT ANGLE GEARBOX

Right Angle Gearbox fitted to EvoTorque®2
11 EVOTORQUE 2 - 110 V - RIGHT ANGLE GEARBOX 11 EVOTORQUE 2 - 230 V - RIGHT ANGLE GEARBOX

180230.B06.RA ET2-72-1000-110, ∕4" sq. dr., 200 - 1,000 N·m 180220.B06.RA ET2-72-1000-230, ∕4" sq. dr., 200 - 1,000 N·m
3
3
180231.B06.RA ET2-72-1350-110, ∕4" sq. dr., 270 - 1,350 N·m 180221.B06.RA ET2-72-1350-230, ∕4" sq. dr., 270 - 1,350 N·m
3
3
180232.B08.RA ET2-72-2000-110, 1" sq. dr., 400 - 2,000 N·m 180222.B08.RA ET2-72-2000-230, 1" sq. dr., 400 - 2,000 N·m
180239.B08.RA ET2-80-2700-110, 1" sq. dr., 540 - 2,700 N·m 180229.B08.RA ET2-80-2700-230, 1" sq. dr., 540 - 2,700 N·m
180238.B08.RA ET2-92-4000-110, 1" sq. dr., 800 - 4,000 N·m 180228.B08.RA ET2-92-4000-230, 1" sq. dr., 800 - 4,000 N·m
180236.B12.RA ET2-119-7000-110, 1 ∕2" sq. dr., 1,400 - 7,000 N·m 180226.B12.RA ET2-119-7000-230, 1 ∕2" sq. dr., 1,400 - 7,000 N·m
1
1
The EvoTorque®2 Right Angle Gearbox is supplied in a cardboard box as standard, if a sturdier case is required Norbar can provide a Peli Case at an
additional charge. Please add .PEL on to the end of the part number when ordering.

Right Angle Gearbox fitted to EBT

13 EBT SERIES - SINGLE SPEED - 13 EBT SERIES - AUTO TWO SPEED -
'SAFE TO START' - RIGHT ANGLE GEARBOX 'SAFE TO START' - RIGHT ANGLE GEARBOX
180353 3 ∕ 4" sq. dr., 160 - 800 N·m, 118 - 600 lbf·ft, Kit 180473* 1" sq. dr., 338 - 1,350 N·m, 250 - 1,000 lbf·ft, Kit
180354 3 ∕ 4" sq. dr., 160 - 800 N·m, 118 - 600 lbf·ft, Bare 180474* 1" sq. dr., 338 - 1,350 N·m, 250 - 1,000 lbf·ft, Bare
180449* 1" sq. dr., 200 - 1,350 N·m, 150 - 1,000 lbf·ft, Kit 180569 1" sq. dr., 676 - 2,700 N·m, 499 - 2,000 lbf·ft, Kit
180450* 1" sq. dr., 200 - 1,350 N·m, 150 - 1,000 lbf·ft, Bare 180570 1" sq. dr., 676 - 2,700 N·m, 499 - 2,000 lbf·ft, Bare
180545 1" sq. dr., 400 - 2,700 N·m, 295 - 2,000 lbf·ft, Kit 180665 1" sq. dr., 1,000 - 4,000 N·m, 738 - 2,950 lbf·ft, Kit
180546 1" sq. dr., 400 - 2,700 N·m, 295 - 2,000 lbf·ft, Bare 180666 1" sq. dr., 1,000 - 4,000 N·m, 738 - 2,950 lbf·ft, Bare
180641 1" sq. dr., 800 - 4,000 N·m, 590 - 2,950 lbf·ft, Kit
180642 1" sq. dr., 800 - 4,000 N·m, 590 - 2,950 lbf·ft, Bare

* 1,350 N·m models come supplied with both a ∕ 4" and 1" sq� dr�

3
NOTE: Kit versions come with tool, 2 batteries, charger and a secondary handle in a carry case.
Bare tools are supplied in a cardboard box without batteries, charger and secondary handle.

enquiry@norbar�com | www�norbar�com 64
