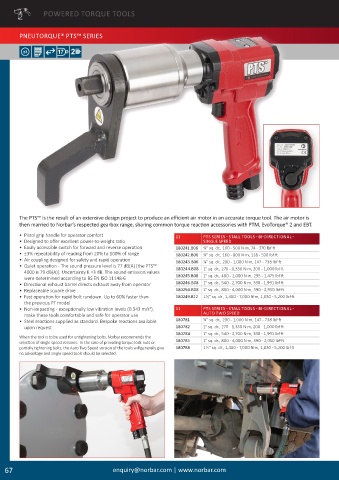

POWERED TORQUE TOOLS

PNEUTORQUE® PTS™ SERIES

17

The PTS™ is the result of an extensive design project to produce an efficient air motor in an accurate torque tool. The air motor is
then married to Norbar’s respected gearbox range, sharing common torque reaction accessories with PTM, EvoTorque® 2 and EBT.

• Pistol grip handle for operator comfort 11 PTS SERIES - STALL TOOLS - BI-DIRECTIONAL -
• Designed to offer excellent power-to-weight ratio SINGLE SPEED
• Easily accessible switch for forward and reverse operation 180241.B06 3 ∕ 4" sq. dr., 100 - 500 N·m, 74 - 370 lbf·ft
• ±3% repeatability of reading from 20% to 100% of range 180242.B06 3 ∕ 4" sq. dr., 160 - 800 N·m, 118 - 590 lbf·ft
• Air coupling designed for safety and rapid operation 180243.B06 3 ∕ 4" sq. dr., 200 - 1,000 N·m, 147 - 738 lbf·ft
• Quiet operation - The sound pressure level is 77 dB(A) [the PTS™ 180244.B08 1" sq. dr., 270 - 1,350 N·m, 200 - 1,000 lbf·ft
4000 is 79 dB(A)]. Uncertainty K =3 dB. The sound emission values
were determined according to BS EN ISO 11148-6 180245.B08 1" sq. dr., 400 - 2,000 N·m, 295 - 1,475 lbf·ft
• Directional exhaust barrel directs exhaust away from operator 180246.B08 1" sq. dr., 540 - 2,700 N·m, 398 - 1,991 lbf·ft
• Replaceable square drive 180250.B08 1" sq. dr., 800 - 4,000 N·m, 590 - 2,950 lbf·ft
• Fast operation for rapid bolt rundown. Up to 60% faster than 180249.B12 1 ∕ 2" sq. dr., 1,400 - 7,000 N·m, 1,030 - 5,200 lbf·ft
1
the previous PT model
• Non-impacting - exceptionally low vibration levels (0.343 m/s²), 11 PTS SERIES - STALL TOOLS - BI-DIRECTIONAL -
make these tools comfortable and safe for operator use AUTO TWO SPEED
• Steel reactions supplied as standard. Bespoke reactions available 180781 3 ∕ 4" sq. dr., 200 - 1,000 N·m, 147 - 738 lbf·ft
upon request 180782 1" sq. dr., 270 - 1,350 N·m, 200 - 1,000 lbf·ft
180784 1" sq. dr., 540 - 2,700 N·m, 398 - 1,991 lbf·ft
When the tool is to be used for untightening bolts, Norbar recommends the
selection of single speed versions. In the case of prevailing torque lock-nuts or 180785 1" sq. dr., 800 - 4,000 N·m, 590 - 2,950 lbf·ft
1
partially tightening bolts, the Auto Two Speed version of the tools will generally give 180788 1 ∕ 2" sq. dr., 1,400 - 7,000 N·m, 1,030 - 5,200 lbf·ft
no advantage and single speed tools should be selected�
