POWERED TORQUE TOOLS

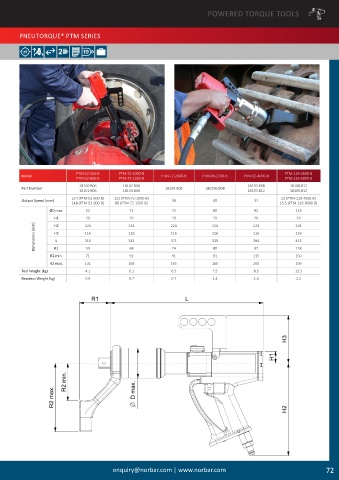

PNEUTORQUE® PTM SERIES
19
Model PTM-52-500-B PTM-72-1000-B PTM-72-2000-B PTM-80-2700-B PTM-92-4000-B PTM-119-4500-B
PTM-52-800-B PTM-72-1350-B PTM-119-6000-B
18100�B06 18102�B06 18159.B08 18108�B12
Part Number 18104�B08 180296�B08
18101�B06 18103�B08 18159.B12 18109�B12
224 (PTM-52-500-B) 122 (PTM-72-1000-B) 23 (PTM-119-4500-B)
Output Speed (rpm) 58 40 32
148 (PTM-52-800-B) 86 (PTM-72-1350-B) 15.5 (PTM-119-6000-B)
ØD max. 52 72 72 80 92 119
H1 224 224 224 224 224 224
29
29
29
29
29
29
Dimensions (mm) H3 116 116 116 116 116 116
H2
L
371
415
335
394
310
342
R1
87
91
R2 min� 59 68 74 80 115 118
91
91
71
150
R2 max. 131 165 165 165 205 199
Tool Weight (kg) 4�1 6�1 6.5 7.5 8.5 13�3
Reaction Weight (kg) 0�9 0�7 0�7 1�4 1�4 2�2
