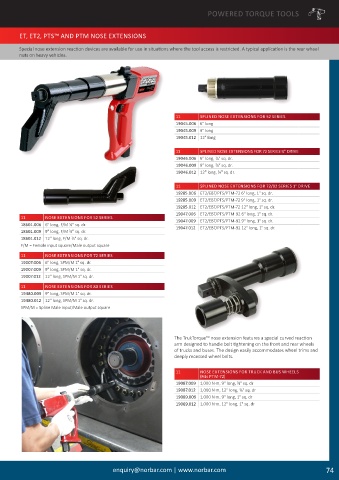

Page 75 - 诺霸英文2022

POWERED TORQUE TOOLS

ET, ET2, PTS™ AND PTM NOSE EXTENSIONS

Special nose extension reaction devices are available for use in situations where the tool access is restricted. A typical application is the rear wheel
nuts on heavy vehicles�

11 SPLINED NOSE EXTENSIONS FOR 52 SERIES
19045�006 6" long
19045�009 9" long
19045�012 12" long
11 SPLINED NOSE EXTENSIONS FOR 72 SERIES ¾" DRIVE
3
19046�006 6" long, ∕ 4" sq� dr�
19046�009 9" long, ∕ 4" sq� dr�
3
19046�012 12" long, ∕ 4" sq� dr�
3
11 SPLINED NOSE EXTENSIONS FOR 72/92 SERIES 1" DRIVE
19285�006 ET2/EBT/PTS/PTM-72 6" long, 1" sq. dr.
19285�009 ET2/EBT/PTS/PTM-72 9" long, 1" sq. dr.
19285�012 ET2/EBT/PTS/PTM-72 12" long, 1" sq. dr.
19047�006 ET2/EBT/PTS/PTM-92 6" long, 1" sq. dr.
11 NOSE EXTENSIONS FOR 52 SERIES 19047�009 ET2/EBT/PTS/PTM-92 9" long, 1" sq. dr.
18601�006 6" long, F/M ∕ 4" sq� dr� 19047�012 ET2/EBT/PTS/PTM-92 12" long, 1" sq. dr.
3
3
18601�009 9" long, F/M ∕ 4" sq� dr�
18601�012 12" long, F/M ∕ 4" sq� dr�
3
F/M = Female input square/Male output square
11 NOSE EXTENSIONS FOR 72 SERIES
19007�006 6" long, SPM/M 1" sq� dr�
19007�009 9" long, SPM/M 1" sq� dr�
19007�012 12" long, SPM/M 1" sq� dr�
11 NOSE EXTENSIONS FOR 80 SERIES
19480�009 9" long, SPM/M 1" sq� dr�
19480�012 12" long, SPM/M 1" sq� dr�
SPM/M = Spline Male input/Male output square

The TrukTorque™ nose extension features a special curved reaction
arm designed to handle bolt tightening on the front and rear wheels
of trucks and buses. The design easily accommodates wheel trims and
deeply recessed wheel bolts�

11 NOSE EXTENSIONS FOR TRUCK AND BUS WHEELS
(Fits PTM-72)
3
19087�009 1,000 N�m, 9" long, ∕ 4" sq� dr
3
19087�012 1,000 N�m, 12" long, ∕ 4" sq� dr
19089�009 1,000 N�m, 9" long, 1" sq. dr
19089�012 1,000 N�m, 12" long, 1" sq. dr

enquiry@norbar�com | www�norbar�com 74
