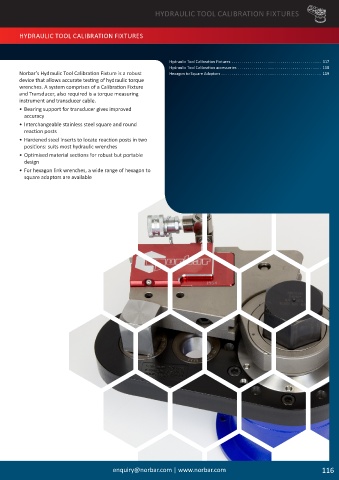

HYDRAULIC TOOL CALIBRATION FIXTURES

HYDRAULIC TOOL CALIBRATION FIXTURES

Hydraulic Tool Calibration Fixtures � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 117
Hydraulic Tool Calibration accessories � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 118
Norbar’s Hydraulic Tool Calibration Fixture is a robust Hexagon to Square Adaptors � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 119
device that allows accurate testing of hydraulic torque
wrenches. A system comprises of a Calibration Fixture
and Transducer, also required is a torque measuring
instrument and transducer cable�
• Bearing support for transducer gives improved
accuracy
• Interchangeable stainless steel square and round
reaction posts
• Hardened steel inserts to locate reaction posts in two
positions: suits most hydraulic wrenches
• Optimised material sections for robust but portable
design
• For hexagon link wrenches, a wide range of hexagon to
square adaptors are available
