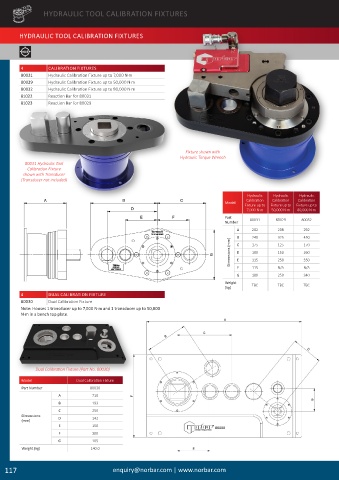

HYDRAULIC TOOL CALIBRATION FIXTURES

HYDRAULIC TOOL CALIBRATION FIXTURES

4 CALIBRATION FIXTURES
80031 Hydraulic Calibration Fixture up to 7,000 N�m
80029 Hydraulic Calibration Fixture up to 50,000 N�m
80032 Hydraulic Calibration Fixture up to 80,000 N�m
81022 Reaction Bar for 80031
81023 Reaction Bar for 80029

Fixture shown with
Hydraulic Torque Wrench
80031 Hydraulic Tool
Calibration Fixture
shown with Transducer
(Transducer not included)

Hydraulic Hydraulic Hydraulic
Model Calibration Calibration Calibration
Fixture up to Fixture up to Fixture up to
7,000 N·m 50,000 N·m 80,000 N·m
Part
Number 80031 80029 80032
A 202 208 292
B C 240 325 450
Dimensions (mm) D E 175 125 170

180
150
260
350
250
115
F 115 N/A N/A
G 180 250 340
Weight TBC TBC TBC
(kg)
4 DUAL CALIBRATION FIXTURE
80030 Dual Calibration Fixture
Note: Houses 1 transducer up to 7,000 N·m and 1 transducer up to 50,000
N·m in a bench top plate.

Dual Calibration Fixture (Part No. 80030)

Model Dual Calibration Fixture
Part Number 80030
A 710
B 193
C 250
Dimensions D 142
(mm)
E 150
F 380
G 105
Weight (kg) 140�0
