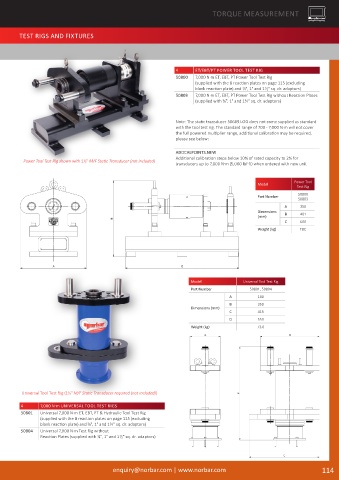

TORQUE MEASUREMENT

TEST RIGS AND FIXTURES

4 ET/EBT/PT POWER TOOL TEST RIG
50800 7,000 N�m ET, EBT, PT Power Tool Test Rig
(supplied with the 8 reaction plates on page 115 (excluding
blank reaction plate) and ∕ 4", 1" and 1 ∕ 2" sq� dr� adaptors)
1
3
50803 7,000 N�m ET, EBT, PT Power Tool Test Rig without Reaction Plates
(supplied with ∕ 4", 1" and 1 ∕ 2" sq� dr� adaptors)
1
3
Note: The static transducer 50669.LOG does not come supplied as standard
�
with the tool test rig. The standard range of 700 - 7,000 N m will not cover
the full powered multiplier range, additional calibration may be required,
please see below:

ADDCALPOINTS�NEW
Additional calibration steps below 10% of rated capacity to 2% for
Power Tool Test Rig shown with 1½" M/F Static Transducer (not included)
transducers up to 7,000 N�m (5,000 lbf�ft) when ordered with new unit

Power Tool
Model
Test Rig
50800
Part Number
50803
A 350
Dimensions B
(mm) 401
C 600
Weight (kg) TBC

Model Universal Tool Test Rig
Part Number 50801, 50804
A 180
B 350
Dimensions (mm)
C 415
D 550
Weight (kg) 73�0

Universal Tool Test Rig (1½" M/F Static Transducer required (not included))
4 7,000 N·m UNIVERSAL TOOL TEST RIGS
�
50801 Universal 7,000 N m ET, EBT, PT & Hydraulic Tool Test Rig
(supplied with the 8 reaction plates on page 115 (excluding
blank reaction plate) and ∕ 4", 1" and 1 ∕ 2" sq� dr� adaptors)
3
1
�
50804 Universal 7,000 N m Test Rig without
Reaction Plates (supplied with ∕ 4", 1" and 1 ∕ 2" sq� dr� adaptors)
1
3
enquiry@norbar�com | www�norbar�com 114
