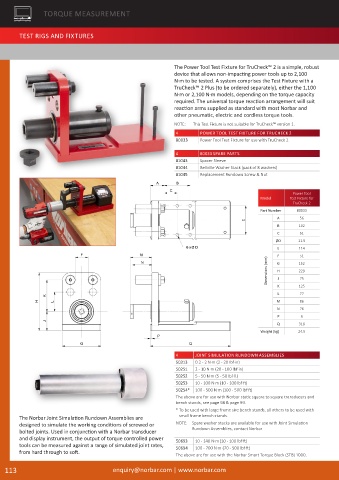

TORQUE MEASUREMENT
TEST RIGS AND FIXTURES
The Norbar Joint Simulation Rundown Assemblies are
designed to simulate the working conditions of screwed or
bolted joints. Used in conjunction with a Norbar transducer
and display instrument, the output of torque controlled power
tools can be measured against a range of simulated joint rates,
from hard through to soft.
113
The Power Tool Test Fixture for TruCheck™ 2 is a simple, robust
device that allows non-impacting power tools up to 2,100
N·m to be tested. A system comprises the Test Fixture with a
TruCheck™ 2 Plus (to be ordered separately), either the 1,100
N·m or 2,100 N·m models, depending on the torque capacity
required. The universal torque reaction arrangement will suit
reaction arms supplied as standard with most Norbar and
other pneumatic, electric and cordless torque tools.
NOTE: This Test Fixture is not suitable for TruCheck™ version 1.
4 POWER TOOL TEST FIXTURE FOR TRUCHECK 2
80033 Power Tool Test Fixture for use with TruCheck 2
4 80033 SPARE PARTS
81043 Spacer Sleeve
81044 Bellville Washer Stack (pack of 8 washers)
81045 Replacement Rundown Screw & Nut
Power Tool
Model Test Fixture for
TruCheck 2
Part Number 80033
A 56
B 102
C 51
ØD 11.5
E 114
F G 152
51
Dimensions (mm) H J 229
75
K 125
L 77
M 86
N 76
P 6
Q 318
Weight (kg) 24.5
4 JOINT SIMULATION RUNDOWN ASSEMBLIES
50313 0.2 - 2 N�m (2 - 20 Ibf�in)
50251 2 - 10 N�m (20 - 100 lbf�in)
50252 5 - 50 N�m (5 - 50 lbf�ft)
50253 10 - 100 N�m (10 - 100 lbf�ft)
50254* 100 - 500 N�m (100 - 500 lbf�ft)
The above are for use with Norbar static square to square transducers and
bench stands, see page 98 & page 99�
* To be used with large frame size bench stands, all others to be used with
small frame bench stands.
NOTE: Spare washer stacks are available for use with Joint Simulation
Rundown Assemblies, contact Norbar
50693 10 - 140 N�m (10 - 100 lbf�ft)
50694 100 - 700 N�m (70 - 500 lbf�ft)
The above are for use with the Norbar Smart Torque Block (STB) 1000.
