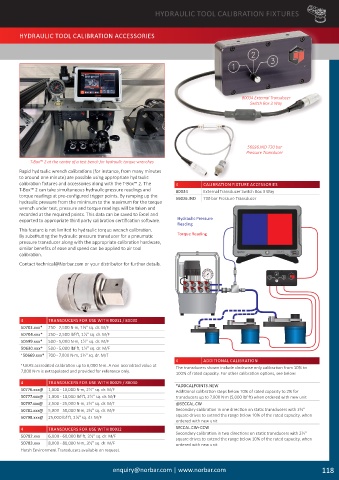

HYDRAULIC TOOL CALIBRATION FIXTURES

HYDRAULIC TOOL CALIBRATION ACCESSORIES

80034 External Transducer
Switch Box 3 Way

56026.IND 730 bar
Pressure Transducer
T-Box™ 2 at the centre of a test bench for hydraulic torque wrenches
Rapid hydraulic wrench calibrations (for instance, from many minutes
to around one minute) are possible using appropriate hydraulic
calibration fixtures and accessories along with the T-Box™ 2. The 4 CALIBRATION FIXTURE ACCESSORIES
T-Box™ 2 can take simultaneous hydraulic pressure readings and 80034 External Transducer Switch Box 3 Way
torque readings at pre-configured trigger points. By ramping up the 56026�IND 730 bar Pressure Transducer
hydraulic pressure from the minimum to the maximum for the torque
wrench under test, pressure and torque readings will be taken and
recorded at the required points� This data can be saved to Excel and
exported to appropriate third party calibration certification software. Hydraulic Pressure
Reading
This feature is not limited to hydraulic torque wrench calibration.
By substituting the hydraulic pressure transducer for a pneumatic Torque Reading
pressure transducer along with the appropriate calibration hardware,
similar benefits of ease and speed can be applied to air tool
calibration.
Contact technical@Norbar.com or your distributor for further details.
50
40 60
30 3 70
2 4
20 80
1
10 5 90
0
0
100
4 TRANSDUCERS FOR USE WITH 80031 / 80030
50703.xxx* 250 - 2,500 N�m, 1 ∕ 2" sq� dr� M/F
1
50704.xxx* 250 - 2,500 lbf�ft, 1 ∕ 2" sq� dr� M/F
1
50599.xxx* 500 - 5,000 N�m, 1 ∕ 2" sq� dr� M/F
1
50630.xxx* 500 - 5,000 lbf�ft, 1 ∕ 2" sq� dr� M/F
1
1
+ 50669.xxx* 700 - 7,000 N�m, 1 ∕ 2" sq� dr� M/F
4 ADDITIONAL CALIBRATION
+ UKAS accredited calibration up to 6,000 N�m. A non-accredited value at The transducers shown include clockwise only calibration from 10% to
7,000 N�m is extrapolated and provided for reference only.
100% of rated capacity. For other calibration options, see below:
4 TRANSDUCERS FOR USE WITH 80029 / 80030 *ADDCALPOINTS�NEW
50776.xxx@ 1,000 - 10,000 N�m, 2 ∕ 2" sq� dr� M/F Additional calibration steps below 10% of rated capacity to 2% for
1
50777.xxx@ 1,000 - 10,000 lbf�ft, 2 ∕ 2" sq� dr� M/F transducers up to 7,000 N�m (5,000 lbf�ft) when ordered with new unit
1
50797.xxx@ 2,500 - 25,000 N·m, 2 ∕ 2" sq� dr� M/F @SECCAL�CW
1
1
50781.xxx@ 5,000 - 50,000 N�m, 2 ∕ 2" sq� dr� M/F Secondary calibration in one direction on static transducers with 2 ∕ 2"
1
50798.xxx@ 25,000 lbf�ft, 2 ∕ 2" sq� dr� M/F square drives to extend the range below 10% of the rated capacity, when
1
ordered with new unit
4 TRANSDUCERS FOR USE WITH 80032 SECCAL�CW+CCW 1
50782.xxx 6,000 - 60,000 lbf�ft, 3 ∕ 2" sq� dr� M/F Secondary calibration in two directions on static transducers with 2 ∕ 2"
1
square drives to extend the range below 10% of the rated capacity, when
50783.xxx 8,000 - 80,000 N�m, 3 ∕ 2" sq� dr� M/F ordered with new unit
1
Harsh Environment Transducers available on request�
