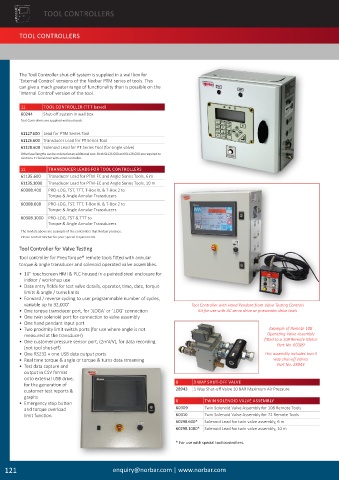

TOOL CONTROLLERS

TOOL CONTROLLERS

The Tool Controller shut-off system is supplied in a wall box for
‘External Control’ versions of the Norbar PTM series of tools. This
can give a much greater range of functionality than is possible on the
‘Internal Control’ version of the tool.

11 TOOL CONTROLLER (TTT based)
60244 Shut-off system in wall box
Tool Controllers are supplied without leads�

61127�600 Lead for PTM Series Tool
61126�600 Transducer Lead for PT Series Tool
61128�600 Solenoid Lead for PT Series Tool (for single valve)
Other lead lengths can be ordered at an additional cost. Both 61126.600 and 61128.600 are required to
control a PT Series tool with a tool controller�
11 TRANSDUCER LEADS FOR TOOL CONTROLLERS
61135�600 Transducer Lead for PTM-EC and Angle Series Tools, 6 m
61135�1000 Transducer Lead for PTM-EC and Angle Series Tools, 10 m
60308�400 PRO-LOG, TST, TTT, T-Box XL & T-Box 2 to
Torque & Angle Annular Transducers
60308�600 PRO-LOG, TST, TTT, T-Box XL & T-Box 2 to
Torque & Angle Annular Transducers
60308�1000 PRO-LOG, TST & TTT to
Torque & Angle Annular Transducers
The models above are a sample of the controllers that Norbar produce.
Please contact Norbar for your special requirements.
Tool Controller for Valve Testing
Tool controller for PneuTorque® remote tools fitted with annular
torque & angle transducer and solenoid operated valve assemblies�
• 10" touchscreen HMI & PLC housed in a painted steel enclosure for
indoor / workshop use
• Data entry fields for test valve details, operator, time, date, torque
limits & angle / turns limits
• Forward / reverse cycling to user programmable number of cycles,
variable up to 32,000° Tool Controller with Hand Pendant from Valve Testing Controls
• One torque transducer port, for ‘.LOGA’ or ‘.LOG’ connection Kit for use with AC servo drive or pneumatic drive tools
• One twin solenoid port for connection to valve assembly
• One hand pendant input port
• Two proximity limit switch ports (for use where angle is not Example of Remote 108
measured at the transducer) Operating Valve Assembly
• One customer pressure sensor port, (2mV/V), for data recording fitted to a 108 Remote Motor
(not tool shut-off) Part No. 60309
• One RS232 + one USB data output ports This assembly includes two 3
• Real time torque & angle or torque & turns data streaming way shut-off valves
• Test data capture and Part No. 28943
output in CSV format
onto external USB drive,
for the generation of 8 3 WAY SHUT-OFF VALVE
customer test reports & 28943 3 Way Shut-off Valve 10 BAR Maximum Air Pressure
graphs
• Emergency stop button 8 TWIN SOLENOID VALVE ASSEMBLY
and torque overload 60309 Twin Solenoid Valve Assembly for 108 Remote Tools
limit function 60310 Twin Solenoid Valve Assembly for 72 Remote Tools
60298�600* Solenoid Lead for twin valve assembly, 6 m
60298�1000* Solenoid Lead for twin valve assembly, 10 m

* For use with special tool controllers.
