TORQUE MEASUREMENT

Calibration details

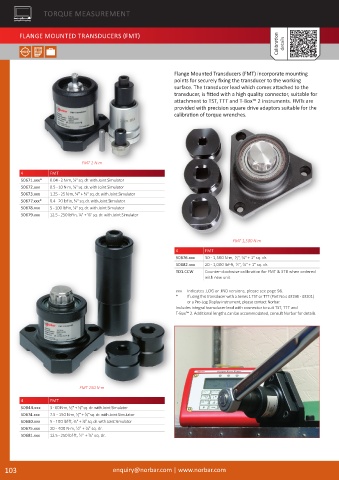

FLANGE MOUNTED TRANSDUCERS (FMT)

Flange Mounted Transducers (FMT) incorporate mounting
points for securely fixing the transducer to the working
surface. The transducer lead which comes attached to the
transducer, is fitted with a high quality connector, suitable for
attachment to TST, TTT and T-Box™ 2 instruments. FMTs are
provided with precision square drive adaptors suitable for the
calibration of torque wrenches.

FMT 2 N·m
4 FMT
50671�xxx* 0.04 - 2 N�m, ∕ 4" sq� dr� with Joint Simulator
1
50672�xxx 0.5 - 10 N�m, ∕ 4" sq� dr� with Joint Simulator
1
50673�xxx 1.25 - 25 N�m, ∕ 4" + ∕ 8" sq� dr� with Joint Simulator
1
3
50677�xxx* 0.4 - 20 lbf�in, ∕ 4" sq� dr� with Joint Simulator
1
50678�xxx 5 - 100 lbf�in, ∕ 4" sq� dr� with Joint Simulator
1
50679�xxx 12.5 - 250 lbf�in, ∕ 4" + ∕ 8" sq� dr� with Joint Simulator
1
3
FMT 1,500 N·m
4 FMT
50676�xxx 30 - 1,500 N�m, ∕ 2", ∕ 4" + 1" sq� dr�
3
1
50682�xxx 20 - 1,000 lbf�ft, ∕ 2", ∕ 4" + 1" sq� dr�
3
1
TD1�CCW Counter-clockwise calibration for FMT & STB when ordered
with new unit
xxx Indicates .LOG or .IND versions, please see page 98.
* If using this transducer with a Series 1 TST or TTT (Part No.s 43198 - 43201)
or a Pro-Log Display instrument, please contact Norbar.
Includes integral transducer lead with connector to suit TST, TTT and
T-Box™ 2. Additional lengths can be accommodated, consult Norbar for details.

FMT 150 N·m

4 FMT
50844.xxx 3 - 60 N·m, ∕ 2" + ∕ 8" sq� dr� with Joint Simulator
3
1
50674�xxx 7.5 - 150 N�m, ∕ 2" + ∕ 8" sq� dr� with Joint Simulator
1
3
50680�xxx 5 - 100 lbf�ft, ∕ 2" + ∕ 8" sq� dr� with Joint Simulator
3
1
50675�xxx 20 - 400 N�m, ∕ 2" + ∕ 4" sq� dr�
1
3
50681�xxx 12.5 - 250 lbf�ft, ∕ 2" + ∕ 4" sq� dr�
3
1
