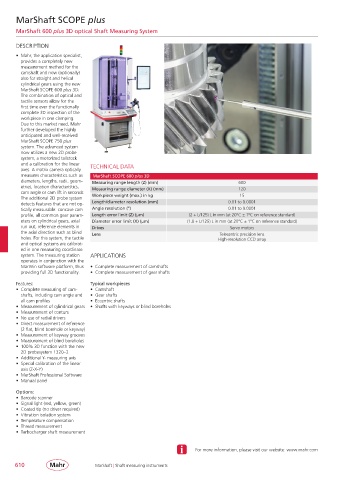

MarShaft SCOPE plus

MarShaft 600 plus 3D optical Shaft Measuring System

DESCRIPTION

• Mahr, the application specialist,
provides a completely new
measurement method for the
camshaft and now (optionally)
also for straight and helical
cylindrical gears using the new
MarShaft SCOPE 600 plus 3D:
The combination of optical and
tactile sensors allow for the
first time ever the functionally
complete 3D inspection of the
workpiece in one clamping.
Due to this market need, Mahr
further developed the highly
anticipated and well-received
MarShaft SCOPE 750 plus
system. The advanced system
now utilizes a new 2D probe
system, a motorized tailstock
and a calibration for the linear TECHNICAL DATA
axes. A matrix camera optically
measures characteristics such as MarShaft SCOPE 600 plus 3D
diameters, lengths, radii, geom- Measuring range length (Z) (mm) 600
etries, location characteristics, Measuring range diameter (X) (mm) 120
cam angle or cam lift in seconds. Workpiece weight (max.) in kg 15
The additional 2D probe system
detects features that are not op- Length/diameter resolution (mm) 0.01 to 0.0001
tically measurable: concave cam Angle resolution (°) 0.01 to 0.0001
profile, all common gear param- Length error limit (Z) (µm) (2 + L/125) L in mm (at 20°C ± 1°C on reference standard)
eters on cylindrical gears, axial Diameter error limit (X) (µm) (1.0 + L/125) L in mm (at 20°C ± 1°C on reference standard)
run out, reference elements in Drives Servo motors
the axial direction such as blind Lens Telecentric precision lens
holes. For this system, the tactile High-resolution CCD array
and optical systems are calibrat-
ed in one measuring coordinate
system. The measuring station APPLICATIONS
operates in conjunction with the
MarWin software platform, thus • Complete measurement of camshafts
providing full 3D functionality. • Complete measurement of gear shafts

Features: Typical workpieces
• Complete measuring of cam- • Camshaft
shafts, including cam angle and • Gear shafts
all cam profiles • Eccentric shafts
• Measurement of cylindrical gears • Shafts with keyways or blind boreholes
• Measurement of conturs
• No use of radial drivers
• Direct measurement of reference
(2 flat, blind borehole or keyway)
• Measurement of keyway grooves
• Measurement of blind boreholes
• 100% 3D function with the new
2D probesystem 1320– 2
• Additional Y- measuring axis
• Special calibration of the linear
axis (Z-X-Y)
• MarShaft Professional Software
• Manual panel
Options:
• Barcode scanner
• Signal light (red, yellow, green)
• Coated tip (no driver required)
• Vibration isolation system
• Temperature compensation
• Thread measurement
• Turbocharger shaft measurement

For more information, please visit our website: www.mahr.com
