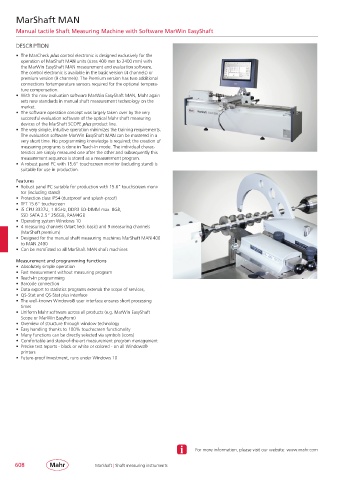

MarShaft MAN

Manual tactile Shaft Measuring Machine with Software MarWin EasyShaft

DESCRIPTION

• The MarCheck plus control electronic is designed exclusively for the
operation of MarShaft MAN units (sizes 400 mm to 2400 mm) with
the MarWin EasyShaft MAN measurement and evaluation software.
The control electronic is available in the basic version (4 channels) or
premium version (9 channels). The Premium version has two additional
connections fortemperature sensors required for the optional tempera-
ture compensation.
• With the new evaluation software MarWin EasyShaft MAN, Mahr again
sets new standards in manual shaft measurement technology on the
market.
• The software operation concept was largely taken over by the very
successful evaluation software of the optical Mahr shaft measuring
devices of the MarShaft SCOPE plus product line.
• The very simple, intuitive operation minimizes the training requirements.
The evaluation software MarWin EasyShaft MAN can be mastered in a
very short time. No programming knowledge is required; the creation of
measuring programs is done in Teach-In mode. The individual charac-
teristics are simply measured one after the other and subsequently this
measurement sequence is stored as a measurement program.
• A robust panel PC with 15.6” touchscreen monitor (including stand) is
suitable for use in production.
Features
• Robust panel PC suitable for production with 15.6” touchscreen moni-
tor (including stand)
• Protection class IP54 (dustproof and splash-proof)
• TFT 15.6” touchscreen
• i5 CPU 3337U, 1.8GHz, DDR3 SO-DIMM max. 8GB,
SSD SATA 2.5“ 256GB, RAM4GB
• Operating system Windows 10
• 4 measuring channels (MarCheck basic) and 9 measuring channels
(MarShaft premium)
• Designed for the manual shaft measuring machines MarShaft MAN 400
to MAN 2400
• Can be retrofitted to all MarShaft MAN shaft machines

Measurement and programming functions
• Absolutely simple operation
• Fast measurement without measuring program
• Teach-In programming
• Barcode connection
• Data export to statistics programs extends the scope of services,
• QS-Stat and QS-Stat plus interface
• The well-known Windows® user interface ensures short processing
times
• Uniform Mahr software across all products (e.g. MarWin EasyShaft
Scope or MarWin EasyForm)
• Overview of structure through window technology
• Easy handling thanks to 100% touchscreen functionality
• Many functions can be directly selected via symbols (icons)
• Comfortable and state-of-the-art measurement program management
• Precise test reports - black or white or colored - on all Windows®
printers
• Future-proof investment, runs under Windows 10

For more information, please visit our website: www.mahr.com
