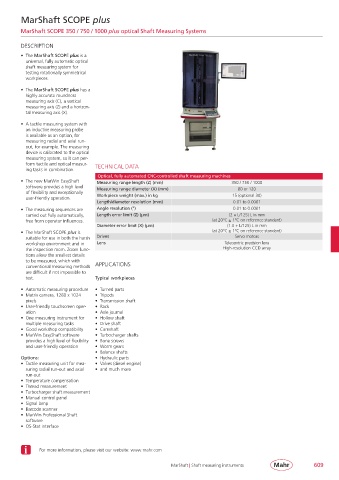

MarShaft SCOPE plus

MarShaft SCOPE 350 / 750 / 1000 plus optical Shaft Measuring Systems

DESCRIPTION

• The MarShaft SCOPE plus is a
universal, fully automatic optical
shaft measuring system for
testing rotationally symmetrical
workpieces.
• The MarShaft SCOPE plus has a
highly accurate roundness
measuring axis (C), a vertical
measuring axis (Z) and a horizon-
tal measuring axis (X).

• A tactile measuring system with
an inductive measuring probe
is available as an option, for
measuring radial and axial run-
out, for example. The measuring
device is calibrated to the optical
measuring system, so it can per-
form tactile and optical measur- TECHNICAL DATA
ing tasks in combination.
Optical, fully automated CNC-controlled shaft measuring machines
• The new MarWin EasyShaft Measuring range length (Z) (mm) 350 / 750 / 1000
software provides a high level Measuring range diameter (X) (mm) 80 or 120
of flexibility and exceptionally Workpiece weight (max.) in kg 15 (optional 30)
user-friendly operation.
Length/diameter resolution (mm) 0.01 to 0.0001
• The measuring sequences are Angle resolution (°) 0.01 to 0.0001
carried out fully automatically, Length error limit (Z) (µm) (2 + L/125) L in mm
free from operator influences. (at 20°C ± 1°C on reference standard)
Diameter error limit (X) (µm) (1.0 + L/125) L in mm
• The MarShaft SCOPE plus is (at 20°C ± 1°C on reference standard)
suitable for use in both the harsh Drives Servo motors
workshop environment and in Lens Telecentric precision lens
the inspection room. Zoom func- High-resolution CCD array
tions allow the smallest details
to be measured, which with APPLICATIONS
conventional measuring methods
are difficult if not impossible to
test. Typical workpieces

• Automatic measuring procedure • Turned parts
• Matrix camera, 1280 x 1024 • Tripods
pixels • Transmission shaft
• User-friendly touchscreen oper- • Rack
ation • Axle journal
• One measuring instrument for • Hollow shaft
multiple measuring tasks • Drive shaft
• Good workshop compatibility • Camshaft
• MarWin EasyShaft software • Turbocharger shafts
provides a high level of flexibility • Bone screws
and user-friendly operation • Worm gears
• Balance shafts
Options: • Hydraulic parts
• Tactile measuring unit for mea- • Valves (diesel engine)
suring radial run-out and axial • and much more
run-out
• Temperature compensation
• Thread measurement
• Turbocharger shaft measurement
• Manual control panel
• Signal lamp
• Barcode scanner
• MarWin Professional Shaft
software
• QS-Stat interface

For more information, please visit our website: www.mahr.com

MarShaft | Shaft measuring instruments 609
