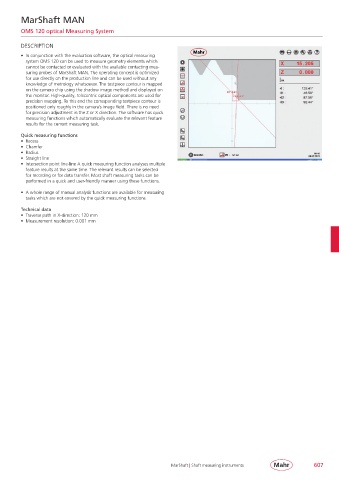

MarShaft MAN

OMS 120 optical Measuring System

DESCRIPTION

• In conjunction with the evaluation software, the optical measuring
system OMS 120 can be used to measure geometry elements which
cannot be contacted or evaluated with the available contacting mea-
suring probes of MarShaft MAN. The operating concept is optimized
for use directly on the production line and can be used without any
knowledge of metrology whatsoever. The testpiece contour is mapped
on the camera chip using the shadow image method and displayed on
the monitor. High-quality, telecentric optical components are used for
precision mapping. To this end the corresponding testpiece contour is
positioned only roughly in the camera’s image field. There is no need
for precision adjustment in the Z or X direction. The software has quick
measuring functions which automatically evaluate the relevant feature
results for the current measuring task.
Quick measuring functions
• Recess
• Chamfer
• Radius
• Straight line
• Intersection point line-line A quick measuring function analyses multiple
feature results at the same time. The relevant results can be selected
for recording or for data transfer. Most shaft measuring tasks can be
performed in a quick and user-friendly manner using these functions.

• A whole range of manual analysis functions are available for measuring
tasks which are not covered by the quick measuring functions.
Technical data
• Traverse path in X-direction: 120 mm
• Measurement resolution: 0.001 mm
