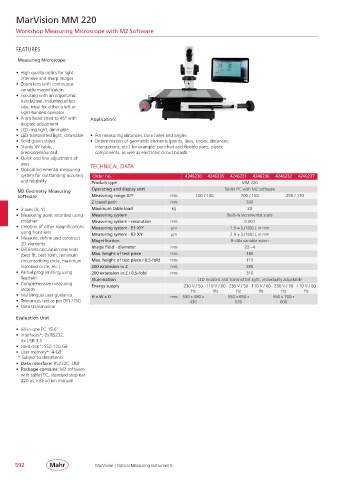

MarVision MM 220

Workshop Measuring Microscope with M2 Software

FEATURES

Measuring Microscope
• High quality optics for light
intensive and sharp images
• Zoom lens with continuous
variable magnification
• Focusing with an ergonomic
handwheel, mounted either
side, ideal for either a left or
right-handed operator
• Prism head tilted to 45° with Application:
dioptric adjustment
• LED ring light, dimmable
• LED transmitted light, dimmable • For measuring distances, bore holes and angles
• Solid granit stand • Determination of geometric elements (points, lines, circles, distances,
• Sturdy XY table, intersections, etc.) for example: punched and flexible parts, plastic
precision-mounted components, as well as electronic circuit boards
• Quick and fine adjustment of
axes TECHNICAL DATA
• Optical incremental measuring
system for outstanding accuracy Order no. 4246230 4246235 4246231 4246236 4246232 4246237
and reliability Product type MM 220
Operating and display unit Tablet PC with M2 software
M2 Geometry Measuring
Software Measuring range X/Y mm 100 / 100 200 / 100 250 / 170
Z travel path mm 200
• 2 axes (X, Y) Maximum table load kg 20
• Measuring point recorded using Measuring system Built-in incremental scale
crosshair Measuring system - resolution mm 0.001
• Creation of other magnifications Measuring system - E1 X/Y µm 1.9 + (L/100) L in mm
using front-lens Measuring system - E2 XY µm 2.9 + (L/100) L in mm
• Measure, define and construct Magnification 8– 40x variable zoom
2D elements
• Different calculation methods Image field - diameter mm 23 – 4
(best fit, best form, minimum Max. height of test piece mm 185
circumscribing circle, maximum Max. height of test piece / 0.5-fold mm 110
inscribed circle, etc.) 200 extension in Z mm 385
• Partial programming using 200 extension in Z / 0.5-fold mm 310
Teach-In Illumination LED Incident and transmitted light, individually adjustable
• Comprehensive measuring Energy supply 230 V / 50 110 V / 60 230 V / 50 110 V / 60 230 V / 50 110 V / 60
records Hz Hz Hz Hz Hz Hz
• Multilingual user guidance H x W x D mm 550 x 480 x 550 x 650 x 550 x 700 x
• Tolerances test as per DIN / ISO 430 530 600
• Data transmission
Evaluation Unit

• All-in-one PC 15.6’’
• Interfaces*: 2x RS232,
4x USB 3.1
• Hard disk*: SSD 120 GB
• User memory*: 4 GB
* Subject to deviations!
• Data interface: RS232C, USB
• Package contains: M2 software
with tablet PC, standard stop bar
220 as, instruction manual
