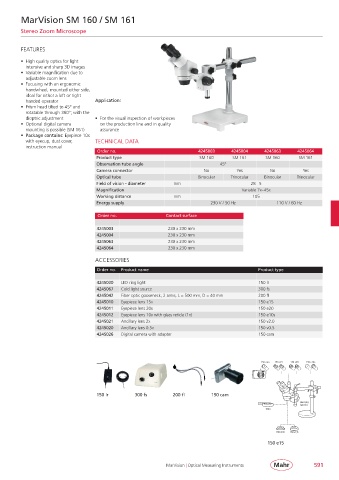

MarVision SM 160 / SM 161

Stereo Zoom Microscope

FEATURES

• High quality optics for light
intensive and sharp 3D images
• Variable magnification due to
adjustable zoom lens
• Focusing with an ergonomic
handwheel, mounted either side,
ideal for either a left or right
handed operator Application:
• Prism head tilted to 45° and
rotatable through 360°; with the
dioptric adjustment • For the visual inspection of workpieces
• Optional digital camera on the production line and in quality
mounting is possible (SM 161) assurance
• Package contains: Eyepiece 10x
with eyecup, dust cover, TECHNICAL DATA
instruction manual
Order no. 4245003 4245004 4245063 4245064
Product type SM 160 SM 161 SM 160 SM 161
Observation tube angle 45°
Camera connector No Yes No Yes
Optical tube Binocular Trinocular Binocular Trinocular
Field of vision - diameter mm 28 – 5
Magnification Variable 7x– 45x
Working distance mm 105
Energy supply 230 V / 50 Hz 110 V / 60 Hz

Order no. Contact surface

4245003 230 x 230 mm
4245004 230 x 230 mm
4245063 230 x 230 mm
4245064 230 x 230 mm
ACCESSORIES
Order no. Product name Product type

4245030 LED ring light 150 lr
4245067 Cold light source 300 fs
4245042 Fiber optic gooseneck, 2 arms, L = 500 mm, D = 40 mm 200 fl
4245010 Eyepiece lens 15x 150 e15
4245011 Eyepiece lens 20x 150 e20
4245012 Eyepiece lens 10x with glass reticle (1x) 150 e10s
4245021 Ancillary lens 2x 150 v2.0
4245020 Ancillary lens 0.5x 150 v0.5
4245026 Digital camera with adapter 150 cam

150 cam 150 e15 150 e20 150 e10s
+

150 lr 300 fs 200 fl 150 cam
SM 160 /
SM 161
150 lr

150 v0,5 150 v2,0
150 e15
