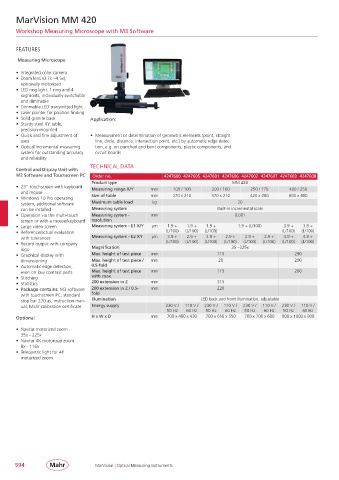

MarVision MM 420

Workshop Measuring Microscope with M3 Software

FEATURES

Measuring Microscope
• Integrated color camera
• Zoom lens (0.7x – 4.5x),
optionally motorized
• LED ring light: 1 ring and 4
segments, individually switchable
and dimmable
• Dimmable LED transmitted light
• Laser pointer for position finding
• Solid granite base Application:
• Sturdy steel XY table,
precision-mounted
• Quick and fine adjustment of • Measurement or determination of geometric elements (point, straight
axes line, circle, distance, intersection point, etc.) by automatic edge detec-
• Optical incremental measuring tion, e.g. on punched and bent components, plastic components, and
system for outstanding accuracy circuit boards
and reliability
TECHNICAL DATA
Control and Display Unit with
M3 Software and Touchscreen PC Order no. 4247600 4247605 4247601 4247606 4247602 4247607 4247603 4247608
Product type MM 420
• 23” touchscreen with keyboard Measuring range X/Y mm 100 / 100 200 / 100 250 / 170 400 / 250
and mouse
• Windows 10 Pro operating Size of table mm 270 x 210 370 x 210 420 x 280 600 x 480
system, additional software Maximum table load kg 20
can be installed Measuring system Built-in incremental scale
• Operation via the multi-touch Measuring system - mm 0.001
screen or with a mouse/keyboard resolution
• Large video screen Measuring system - E1 X/Y µm 1.9 + 1.9 + 1.9 + 1.9 + (L/100) 3.9 + 3.9 +
• Reference/actual evaluation (L/100) (L/100) (L/100) (L/100) (L/100)
with tolerances Measuring system - E2 XY µm 2.9 + 2.9 + 2.9 + 2.9 + 2.9 + 2.9 + 4.9 + 4.9 +
• Record output with company (L/100) (L/100) (L/100) (L/100) (L/100) (L/100) (L/100) (L/100)
logo Magnification 35 – 225x
• Graphical display with Max. height of test piece mm 115 290
dimensioning Max. height of test piece / mm 20 200
• Automatic edge detection, 0.5-fold
even on low contrast parts Max. height of test piece mm 115 260
• Stitching with coax.
• Statistics 200 extension in Z mm 315
• Package contains: M3 software 200 extension in Z / 0.5- mm 220
with touchscreen PC, standard fold
stop bar 220 as, instruction man- Illumination LED back and front illumination, adjustable
ual, Mahr calibration certificate Energy supply 230 V / 110 V / 230 V / 110 V / 230 V / 110 V / 230 V / 110 V /
50 Hz 60 Hz 50 Hz 60 Hz 50 Hz 60 Hz 50 Hz 60 Hz
Optional H x W x D mm 700 x 480 x 430 700 x 650 x 550 700 x 700 x 600 800 x 1000 x 900

• Navitar motorized zoom
35x - 225x
• Navitar 4K motorized zoom
8x - 116x
• Telecentric light for 4K
motorized zoom
