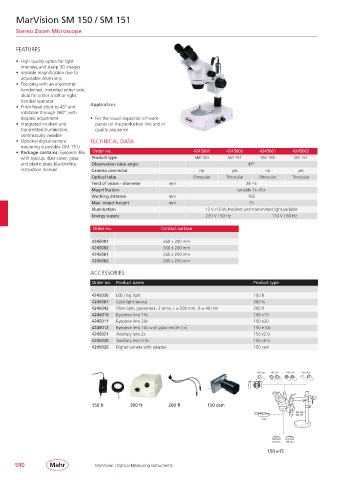

MarVision SM 150 / SM 151

Stereo Zoom Microscope

FEATURES

• High quality optics for light
intensive and sharp 3D images
• Variable magnification due to
adjustable zoom lens
• Focusing with an ergonomic
handwheel, mounted either side,
ideal for either a left or right
handed operator
• Prism head tilted to 45° and Application:
rotatable through 360°; with
dioptric adjustment • For the visual inspection of work-
• Integrated incident and pieces on the production line and in
transmitted illumination, quality assurance
continuously variable
• Optional digital camera TECHNICAL DATA
mounting is possible (SM 151)
• Package contains: Eyepiece 10x Order no. 4245001 4245002 4245061 4245062
with eyecup, dust cover, glass Product type SM 150 SM 151 SM 150 SM 151
and plastic plate black/white, Observation tube angle 45°
instruction manual Camera connector no yes no yes
Optical tube Binocular Trinocular Binocular Trinocular
Field of vision - diameter mm 28 – 5
Magnification variable 7x– 45x
Working distance mm 105
Max. object height mm 75
Illumination 12 V /15 W, Incident and transmitted light,variable
Energy supply 230 V / 50 Hz 110 V / 60 Hz

Order no. Contact surface

4245001 260 x 200 mm
4245002 260 x 200 mm
4245061 260 x 200 mm
4245062 260 x 200 mm
ACCESSORIES
Order no. Product name Product type

4245030 LED ring light 150 lr
4245067 Cold light source 300 fs
4245042 Fiber optic gooseneck, 2 arms, L = 500 mm, D = 40 mm 200 fl
4245010 Eyepiece lens 15x 150 e15
4245011 Eyepiece lens 20x 150 e20
4245012 Eyepiece lens 10x with glass reticle (1x) 150 e10s
4245021 Ancillary lens 2x 150 v2.0
4245020 Ancillary lens 0.5x 150 v0.5
4245026 Digital camera with adapter 150 cam

150 cam 150 e15 150 e20 150 e10s
+

150 lr 300 fs 200 fl 150 cam
SM 160 /
SM 161
150 lr

150 v0,5 150 v2,0
150 e15

590 MarVision | Optical Measuring Instruments
