P. 589

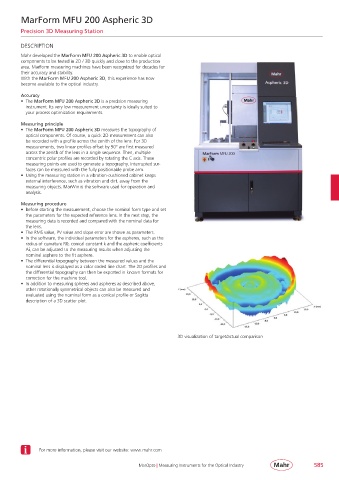

MarForm MFU 200 Aspheric 3D

        Precision 3D Measuring Station

        DESCRIPTION

        Mahr developed the MarForm MFU 200 Aspheric 3D to enable optical
        components to be tested in 2D / 3D quickly and close to the production
        area. MarForm measuring machines have been recognized for decades for
        their accuracy and stability.
        With the MarForm MFU 200 Aspheric 3D, this experience has now
        become available to the optical industry.
        Accuracy
        •  The MarForm MFU 200 Aspheric 3D is a precision measuring
          instrument. Its very low measurement uncertainty is ideally suited to
          your process optimization requirements.

        Measuring principle
        •  The MarForm MFU 200 Aspheric 3D measures the topography of
          optical components. Of course, a quick 2D measurement can also
          be recorded with a profile across the zenith of the lens. For 3D
          measurements, two linear profiles offset by 90° are first measured
          across the zenith of the lens in a single sequence. Then, multiple
          concentric polar profiles are recorded by rotating the C axis. These
          measuring points are used to generate a topography. Interrupted sur-
          faces can be measured with the fully positionable probe arm.
        •  Using the measuring station in a vibration-cushioned cabinet keeps
          external interference, such as vibration and dirt, away from the
          measuring objects. MarWin is the software used for operation and
          analysis.
        Measuring procedure
        •  Before starting the measurement, choose the nominal form type and set
          the parameters for the expected reference lens. In the next step, the
          measuring data is recorded and compared with the nominal data for
          the lens.
        •  The RMS value, PV value and slope error are shown as parameters.
        •  In the software, the individual parameters for the aspheres, such as the
          radius of curvature R0, conical constant k and the aspheric coefficients
          Ai, can be adjusted to the measuring results when adjusting the
          nominal asphere to the fit asphere.
        •  The differential topography between the measured values and the
          nominal lens is displayed as a color coded line chart. The 2D profiles and
          the differential topography can then be exported in known formats for
          correction for the machine tool.
        •  In addition to measuring spheres and aspheres as described above,
          other rotationally symmetrical objects can also be measured and
          evaluated using the nominal form as a conical profile or Sagitta
          description of a 3D scatter plot.






                                                               3D visualization of target/actual comparison























               For more information, please visit our website: www.mahr.com

                                                  MarOpto | Measuring Instruments for the Optical Industry     585
