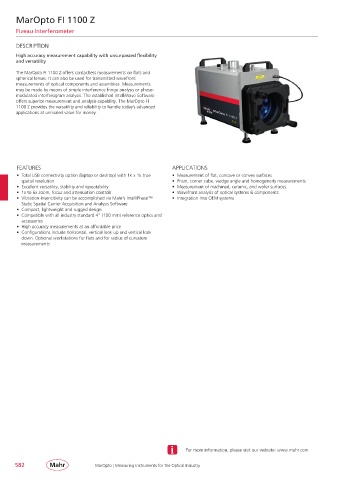

MarOpto FI 1100 Z

Fizeau Interferometer

DESCRIPTION

High accuracy measurement capability with unsurpassed flexibility
and versatility
The MarOpto FI 1100 Z offers contactless measurements on flats and
spherical lenses. It can also be used for transmitted wavefront
measurements of optical components and assemblies. Measurements
may be made by means of simple interference fringe analysis or phase-
modulated interferogram analysis. The established IntelliWave Software
offers superior measurement and analysis capability. The MarOpto FI
1100 Z provides the versatility and reliability to handle today’s advanced
applications at unrivaled value for money.

FEATURES APPLICATIONS
• Total USB connectivity option (laptop or desktop) with 1k x 1k true • Measurement of flat, concave or convex surfaces
spatial resolution • Prism, corner cube, wedge angle and homogeneity measurements
• Excellent versatility, stability and repeatability • Measurement of machined, ceramic, and wafer surfaces
• 1x to 6x zoom, focus and attenuation controls • Wavefront analysis of optical systems & components
• Vibration-insensitivity can be accomplished via Mahr’s IntelliPhase™ • Integration into OEM systems
Static Spatial Carrier Acquisition and Analysis Software
• Compact, lightweight and rugged design
• Compatible with all industry standard 4” (100 mm) reference optics and
accessories
• High accuracy measurements at an affordable price
• Configurations include horizontal, vertical look up and vertical look
down. Optional workstations for flats and for radius of curvature
measurements

For more information, please visit our website: www.mahr.com
