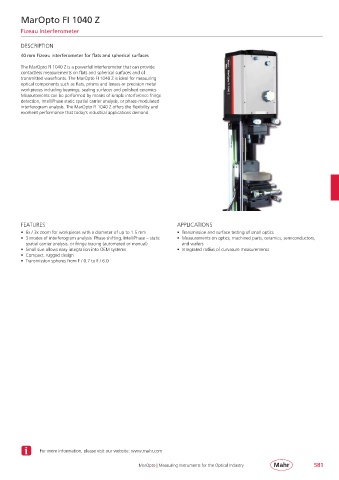

MarOpto FI 1040 Z
Fizeau Interferometer
DESCRIPTION
40 mm Fizeau interferometer for flats and spherical surfaces
The MarOpto FI 1040 Z is a powerful interferometer that can provide
contactless measurements on flats and spherical surfaces and of
transmitted wavefronts. The MarOpto FI 1040 Z is ideal for measuring
optical components such as flats, prisms and lenses or precision metal
workpieces including bearings, sealing surfaces and polished ceramics.
Measurements can be performed by means of simple interference fringe
detection, IntelliPhase static spatial carrier analysis, or phase-modulated
interferogram analysis. The MarOpto FI 1040 Z offers the flexibility and
excellent performance that today’s industrial applications demand.
FEATURES APPLICATIONS
• 6x / 3x zoom for workpieces with a diameter of up to 1.5 mm • Transmission and surface testing of small optics
• 3 modes of interferogram analysis: Phase shifting, IntelliPhase – static • Measurements on optics, machined parts, ceramics, semiconductors,
spatial carrier analysis, or fringe tracing (automated or manual) and wafers
• Small size allows easy integration into OEM systems • Integrated radius of curvature measurements
• Compact, rugged design
• Transmission spheres from F / 0.7 to F / 6.0
For more information, please visit our website: www.mahr.com
