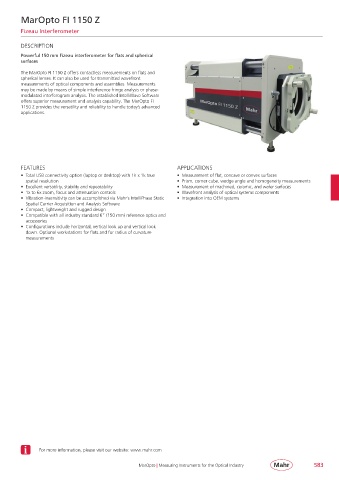

MarOpto FI 1150 Z

Fizeau Interferometer

DESCRIPTION

Powerful 150 mm Fizeau interferometer for flats and spherical
surfaces
The MarOpto FI 1150 Z offers contactless measurements on flats and
spherical lenses. It can also be used for transmitted wavefront
measurements of optical components and assemblies. Measurements
may be made by means of simple interference fringe analysis or phase-
modulated interferogram analysis. The established IntelliWave Software
offers superior measurement and analysis capability. The MarOpto FI
1150 Z provides the versatility and reliability to handle today’s advanced
applications.

FEATURES APPLICATIONS
• Total USB connectivity option (laptop or desktop) with 1k x 1k true • Measurement of flat, concave or convex surfaces
spatial resolution • Prism, corner cube, wedge angle and homogeneity measurements
• Excellent versatility, stability and repeatability • Measurement of machined, ceramic, and wafer surfaces
• 1x to 6x zoom, focus and attenuation controls • Wavefront analysis of optical systems components
• Vibration-insensitivity can be accomplished via Mahr’s IntelliPhase Static • Integration into OEM systems
Spatial Carrier Acquisition and Analysis Software
• Compact, lightweight and rugged design
• Compatible with all industry standard 6” (150 mm) reference optics and
accessories
• Configurations include horizontal, vertical look up and vertical look
down. Optional workstations for flats and for radius of curvature
measurements

For more information, please visit our website: www.mahr.com

MarOpto | Measuring Instruments for the Optical Industry 583
